  SPECIFICATIONS

  Brand Name: FD

  Certification: CE

  Choice: yes

  High-concerned chemical: None

  Origin: Mainland China

  Smart home platform: Tuya

  Water Leakage Sensor

  It is a WIFI intelligent water level controller, which can be set by APP to realize water level monitoring, Water supplement or drainage, high and low water level remote APP push alarm notification etc,.

  The product is suitable for various water level control occasions, such as HVAC system, hot water process, municipal drainage, boiler, water tower, storage tank, breeding irrigation etc.



  Main Features:

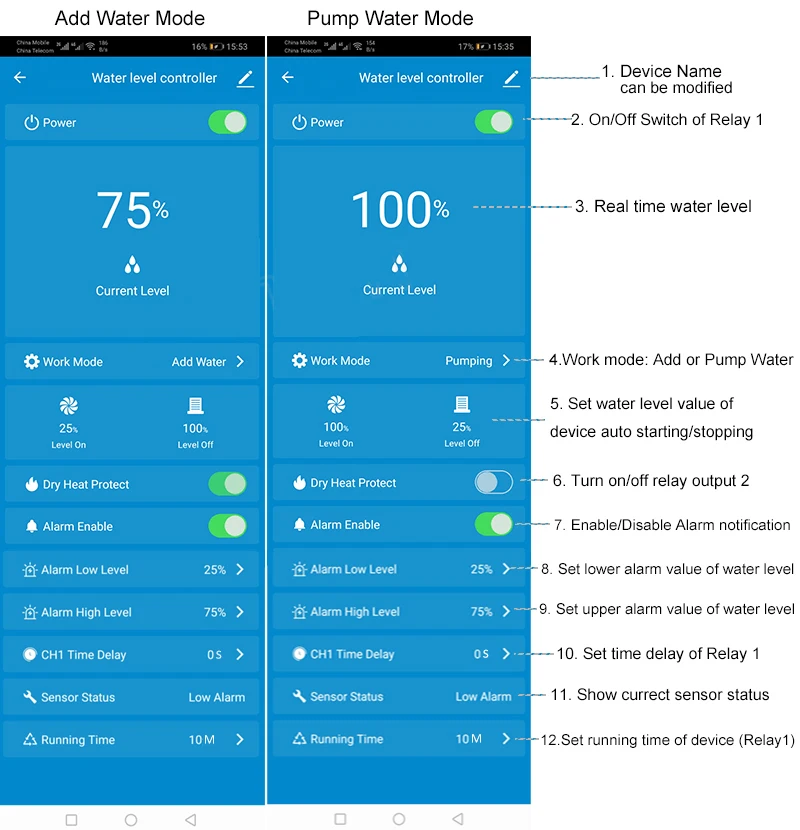

  1. Real-Time Supervision: APP can display the current water level,

  2. Turn on/off equipment (relay 1) remotely via App. Users can also control it on/off by manual switch button B.

  3. Two relay outputs: Relay 1 control water level, Relay 2 for dry heating protection.

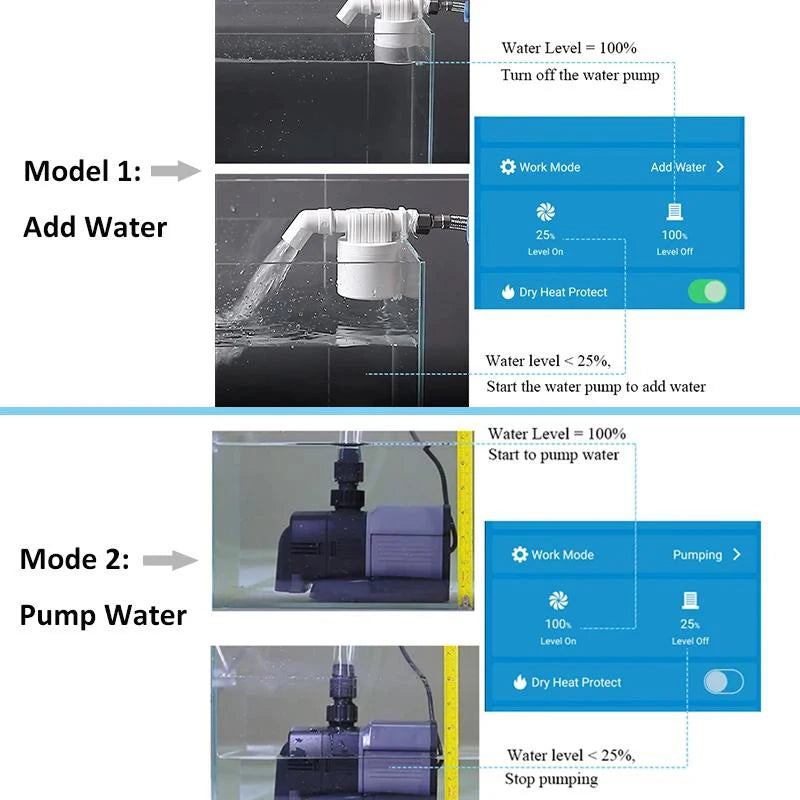

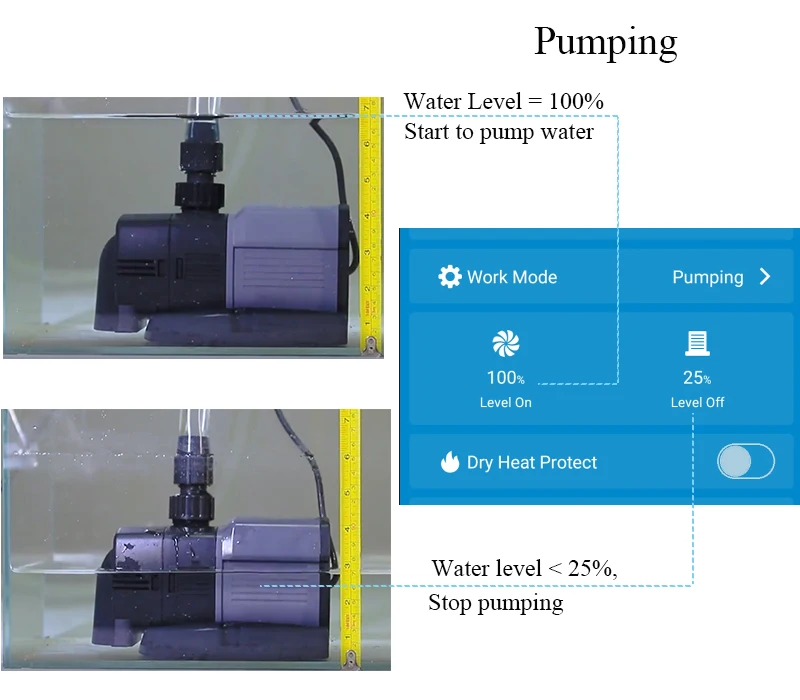

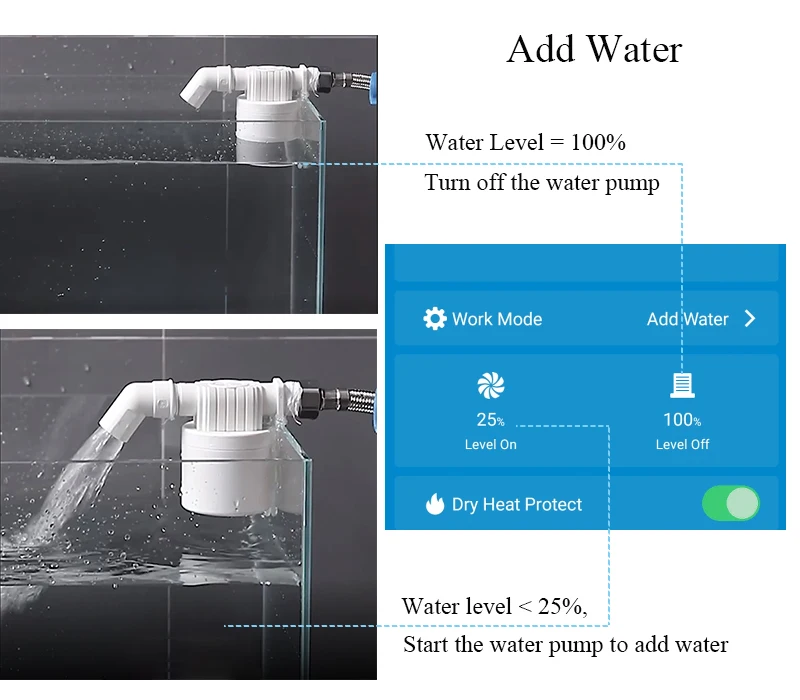

  4. Preset"Add water" or "Pump water" working mode, can auto turn on/off relay 1 when it reaches to the preset water level value.

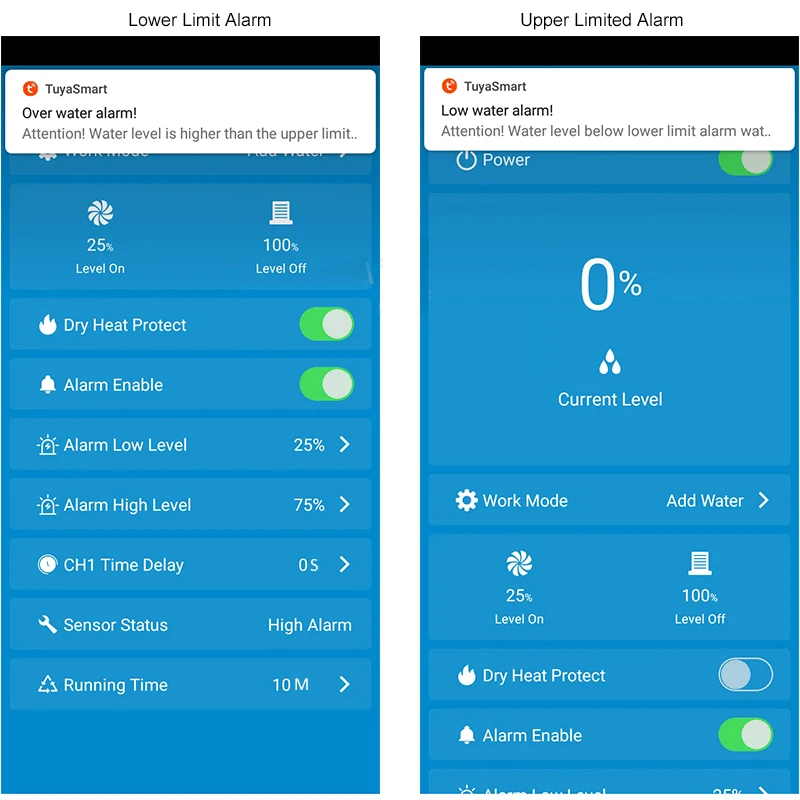

  5. Set upper and Lower limit value of water level alarm via APP, real-time push alarm notification to users' smartphone.

  6. Can set relay 1 running or delay working time.

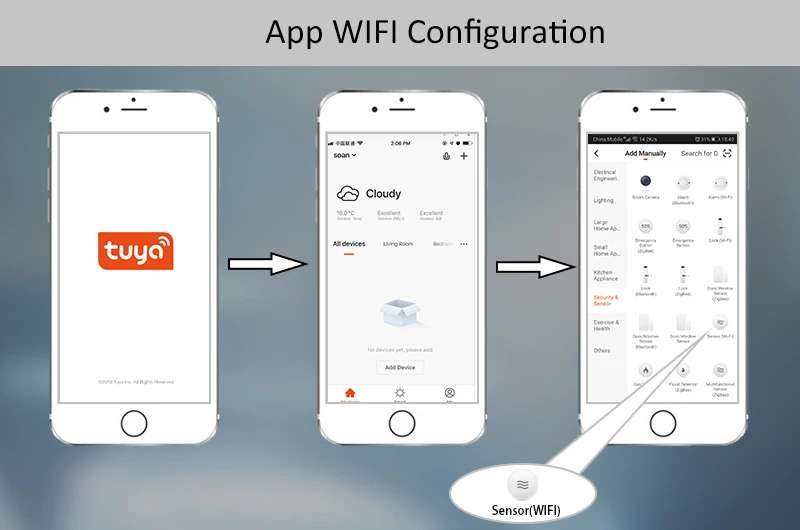

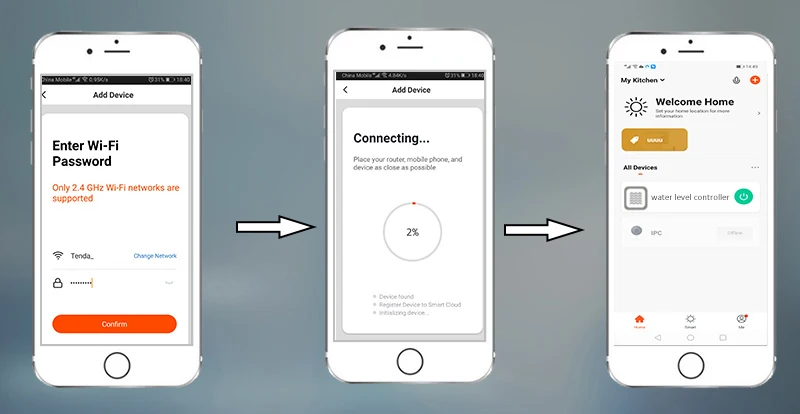

  A: WIFI configuration button

  B: On/Off Switch of Relay Output 1: Users can press the button B to switch on/off Relay 1 manually. It is only effective when the preset starting/stopping water level is not reached.

  C: WIFI Configuration Indicator/ Relay Output 1 Status Indicator

  D: Relay Output 2 Status Indicator

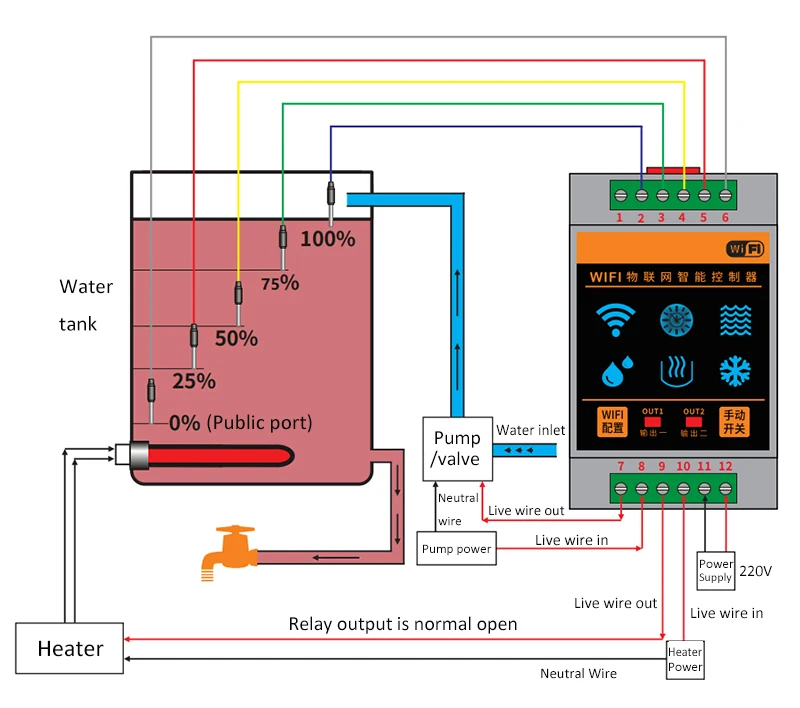

  Remark:

  Terminal 1: No use.
  Terminal 2: 100% water level
  Terminal 3: 75% water level
  Terminal 4: 50% water level
  Terminal 5: 25% water level
  Terminal 6: Public water point (COM)
  Terminal 7,8: Relay Output 1 (Normal Open)
  Terminal 9,10: Relay Output 2 (Normal Open)
  Terminal 11,12: 220V Power Supply.

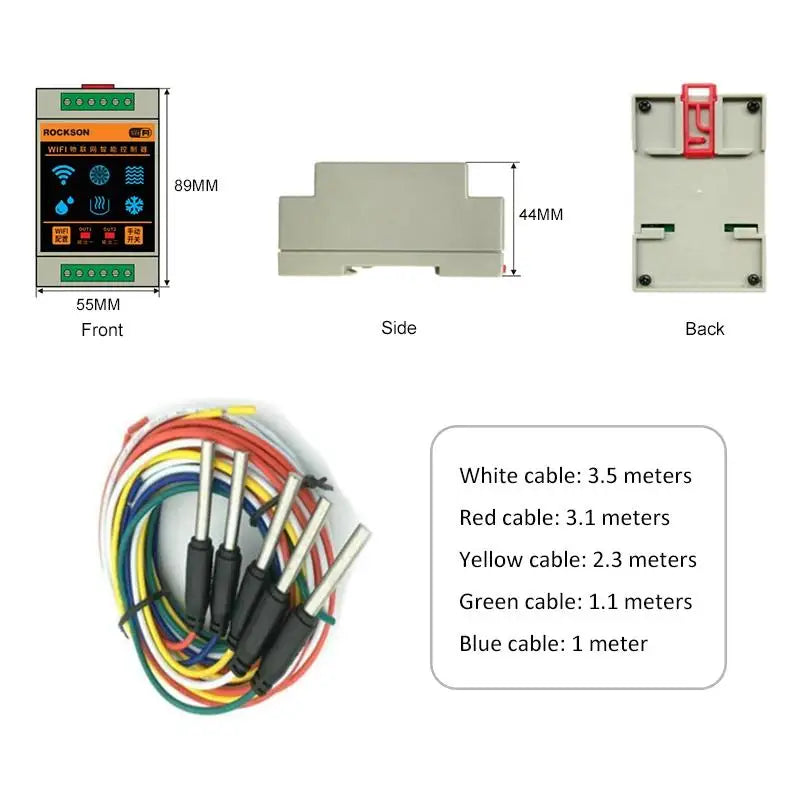

  Packing List

  * One wifi water level controller

  * Five water level sensors with different cable lenth.

  Remark:

  White cable: 3.5 meters
  Red cable: 3.1 meters
  Yellow cable: 2.3 meters
  Green cable: 1.1 meters
  Blue cable: 1 meter


  Users can prolong the cable by themself if cable length is no enough. The max cable length that can be extended is 30 meters.



  Specification

  *Size of controller： 89mm x 55mm x 44mm

  *Power voltage: AC220V

  *Power consumption: less than 2W

  *Limited running time of relay output 1: 0 to 720 minutes settable via App. Each setting progresses is 5 minutes, 0, 5, 10, 15, .............710, 715, 720

  *Time delay setting of relay output 1: 0 to 30 seconds settable via App.

  *Relay outputs: two relay outputs（normal open）

  The contact current capacity is 10A for resistive load and 2A for inductive load. It can control 2000W resistive load or 500W motor /water pump. Larger loads require AC contactor expansion.

  *Working environment: -10℃ to +50℃

  *WIFI 2.4GHZ b/g/n, not support 5G WIFI.
