Smart Home Alarm System Water Leak Sensor Wifi Mobile APP Remote Water Level Alarm Switch Vape Fuel Tank Flow Detector

• Compare
• Add to Wishlist
• Ask a question
  Ask a question

  Submit now

• Description

  Description

  SPECIFICATIONS

  Brand Name: Ziqqucu

  Material: Mixture

  Model Number: Water level controller

  Origin: Mainland China

  Output: Digital Sensor

  Theory: Inductance Sensor

  Type: Water Flow Sensor

  Use: Pressure Sensor

  is_customized: Yes



  Smart Home Alarm System Water Leak Sensor Tuya Wifi Mobile APP Remote Water Level Alarm Switch Vape Fuel Tank Flow Detector Water Leakage Protection

  Product selling point:

  1. Using high-quality materials, the quality is guaranteed

  2. Real-time synchronous feedback of remote output status and water level

  3. It can run independently without WIFI, and realize the function of single-machine control of water level

  4. The on-off of one output can be controlled remotely or manually on site (when the set water level value is not reached)

  5. It can control drainage with high opening and low closing, or control water replenishment with low opening and high closing, or select time-limited control mode

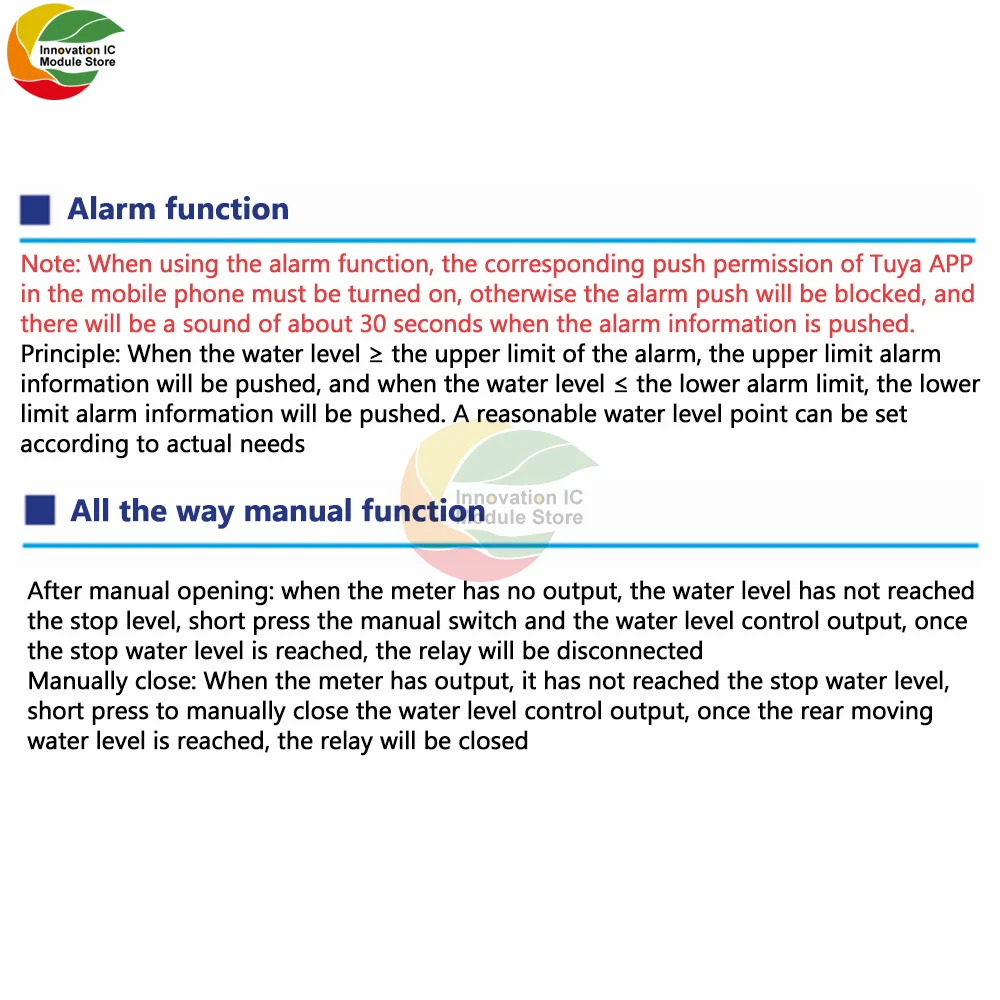

  6. Remote upper and lower water level alarm APP push function

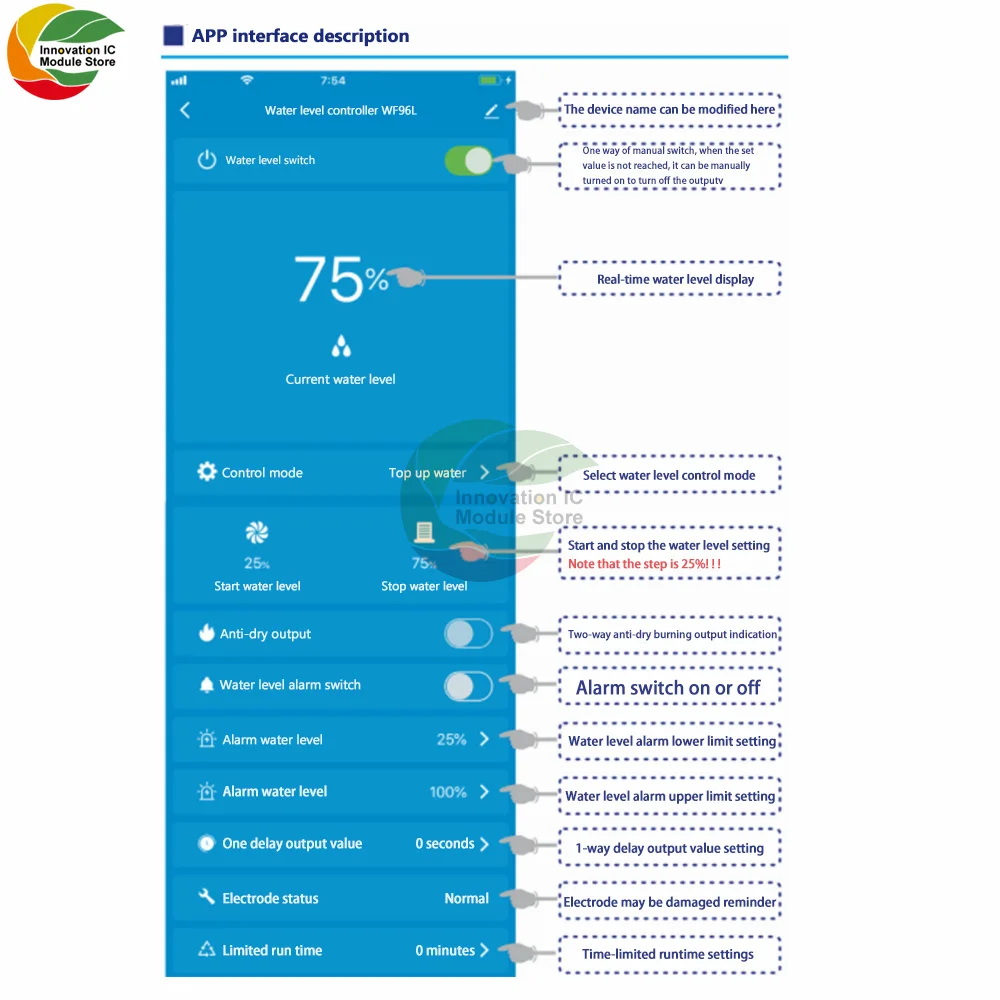

  7. APP can display the current water level, start water level, stop water level, upper and lower limit alarm water level

  8. Two outputs, one water level control, one anti-dry function

  9. The main account can share the device with others, and the device can only be added under one main account (note that the alarm can only be realized if the device and the mobile phone are both online. Without the network, it is like the mobile phone can’t make a call without a signal!)

  parameter:

  Model: YF-S201

  Interface size: 4 points (G1/2)

  Operating voltage range: DC5 ~ 15V

  Inner/Outer Diameter: 10.9mm/20mm

  Thread length: 14.5mm12.5mm

  Material: Nylon

  Water pressure resistance: ≤1.75MPa

  Output pulse high level: >DC4.7V (input voltage DC5V)

  Output pulse low level: <DC0.5V (input voltage DC5V)

  Insulation resistance: >100MQ

  Flow range: 1～30L\MIN

  Airtightness: Close each hole, add 1.7Mpa water pressure test for 1 minute without leakage and deformation

  Flow pulse characteristics: F= (7.5*Q) error≤3%

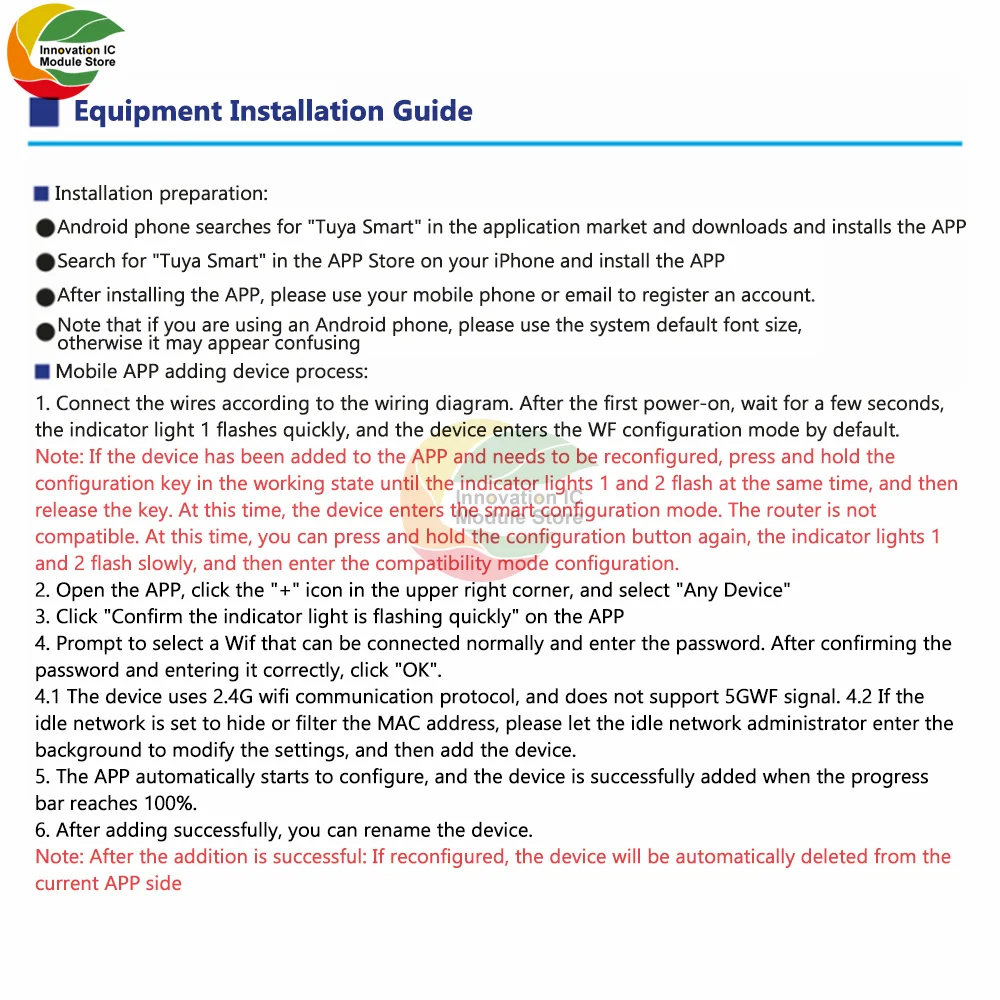

  Configuration process:

  Installation preparation:

  Android phone search ""Tuya Smart"" in the application market and download and install the APP

  Search ""Tuya Smart"" in the APP Store on the Apple mobile phone and install the APP.

  After installing the APP, please use your mobile phone or email to register an account.

  Note that if you are using an Android phone, please use the system default font, otherwise the display will be confusing

  Mobile APP adding device process:

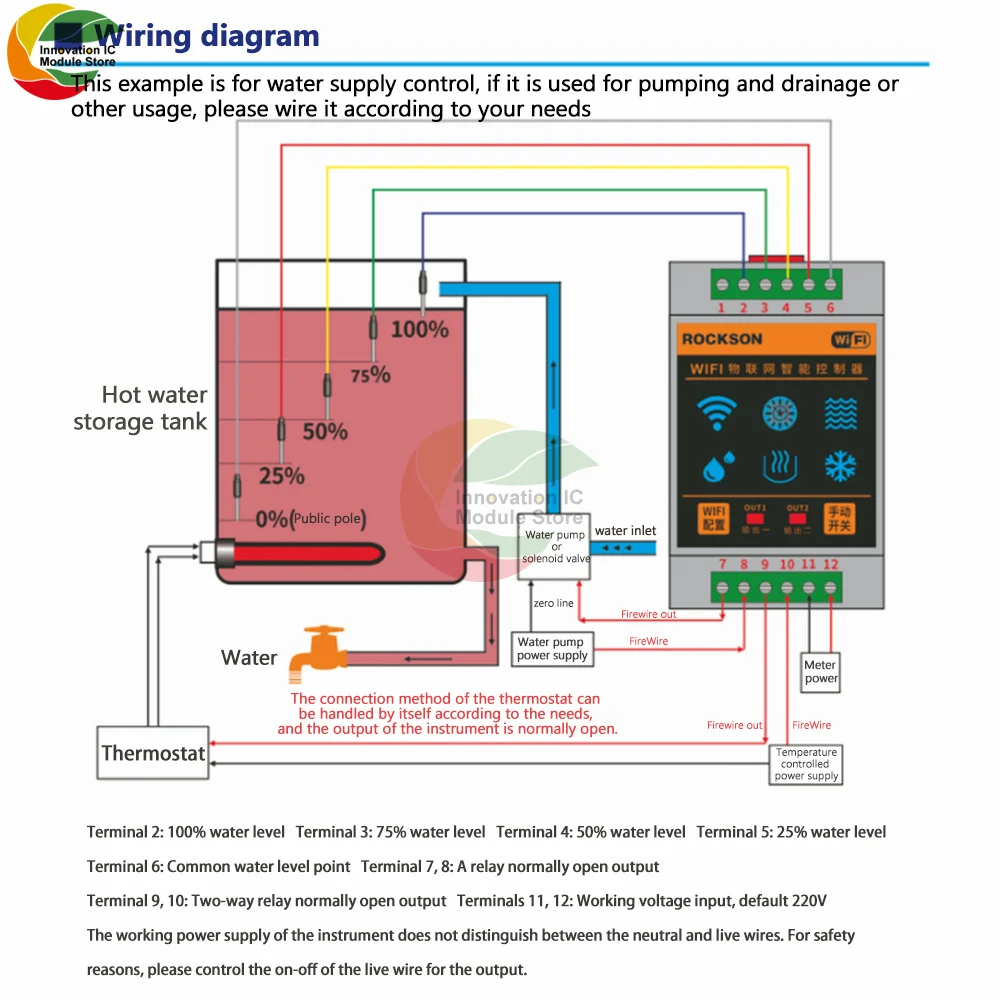

  1. Connect the wires according to the wiring diagram. After the first power-on, wait for a few seconds, the indicator light 1 flashes quickly, and the device enters the WIFI configuration mode by default.

  Note: If the device has been added to the APP and needs to be reconfigured, press and hold the configuration button in the working state until the indicator lights 1 and 2 flash at the same time, and then release the button. At this time, the device enters the smart configuration mode. The router is not compatible, at this time, you can press and hold the configuration button again, the indicator lights 1 and 2 flash slowly, and then enter the compatibility mode configuration.

  2. Open the APP, and click the "+" icon in the upper right corner to select any device.

  3. Click "Confirm the indicator light is flashing quickly" on the APP

  4. Prompt to select a wifi that can access the Internet normally and enter the password. After confirming the password and entering it correctly, click "OK".

  4.1 The device uses 2.4G wifi communication protocol, and does not support 5G network for the time being.

  4.2 If the network is set to hide or filter the MAC address, please ask the network administrator to enter the background to modify the settings, and then add the device.

  5. The APP automatically starts to configure, and the device is added successfully when the progress bar is reached.

  6. After adding successfully, you can rename the device.

  Note: After the addition is successful, the device will be automatically deleted from the current APP if it is reconfigured.

  parameter:

  Appearance size: 89*55*44mm

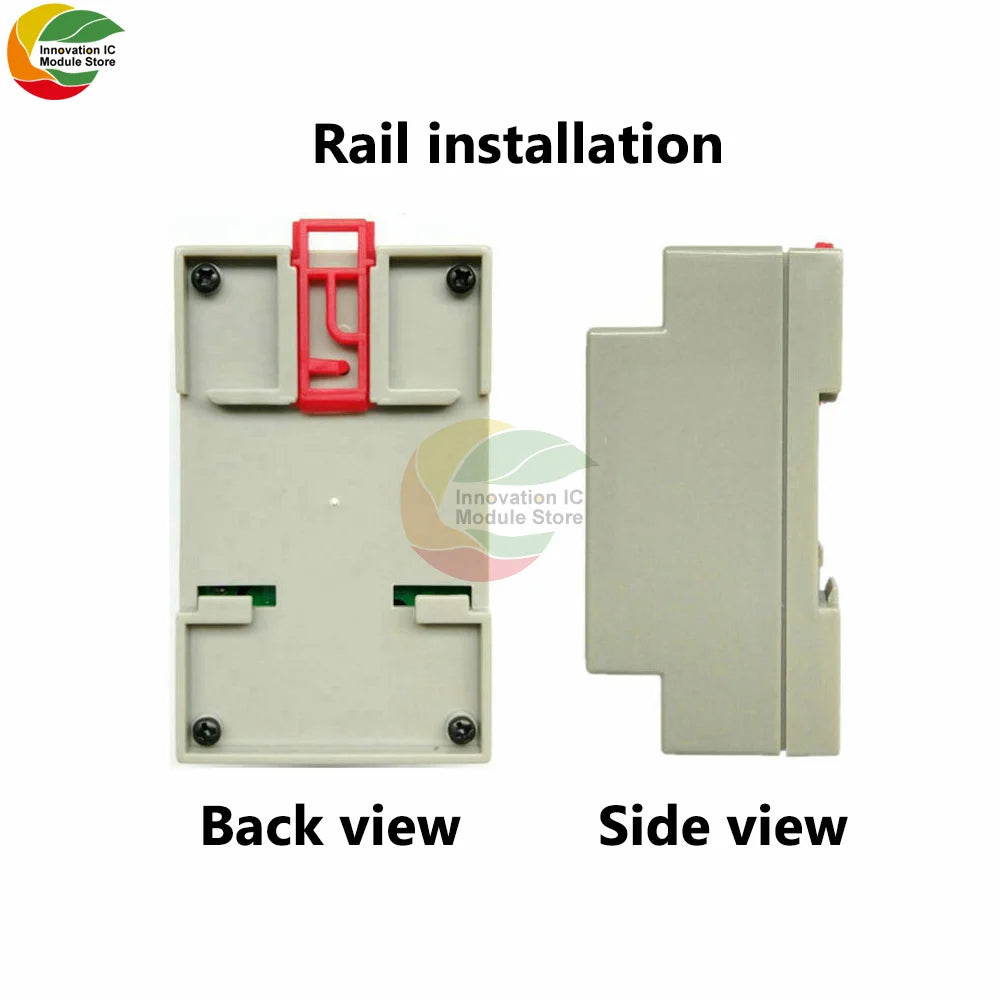

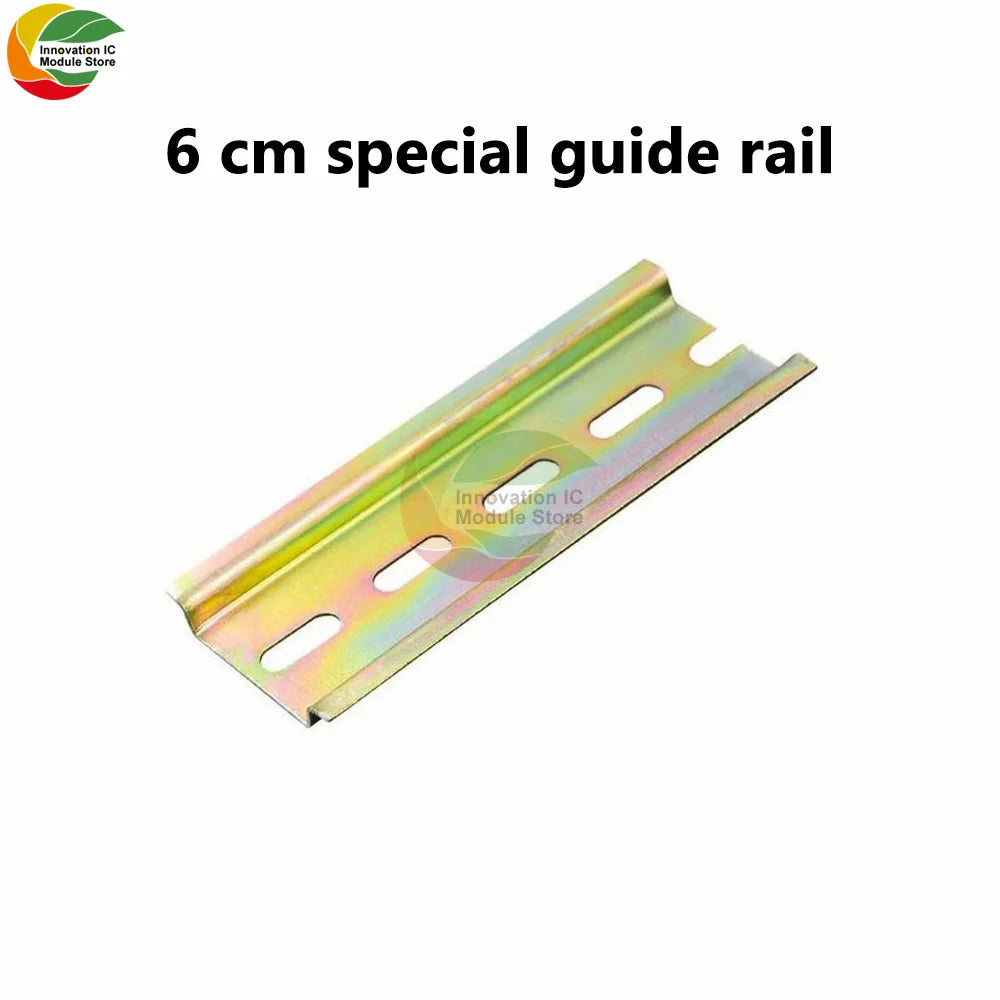

  Installation method and size: standard 35MM rail installation

  Working power and power consumption: AC220V; <2W

  Water level display: five-level water level display: 0%, 25%, 50%, 75%, 100%

  Water level control range: full water level: 25%, 50%, 75%, 100% make-up water level: 25%, 50%, 75%, 100%

  Time limit range: 0-720 minutes, need to be set on the APP, step by 5 minutes to set

  Relay life: on and off 100,000 times

  Operating environment: -10℃~50℃

  Wireless standard: WIFI2.4GHZ B/G/N

  Parameter memory: long-term memory of setting parameters when power off, can run offline

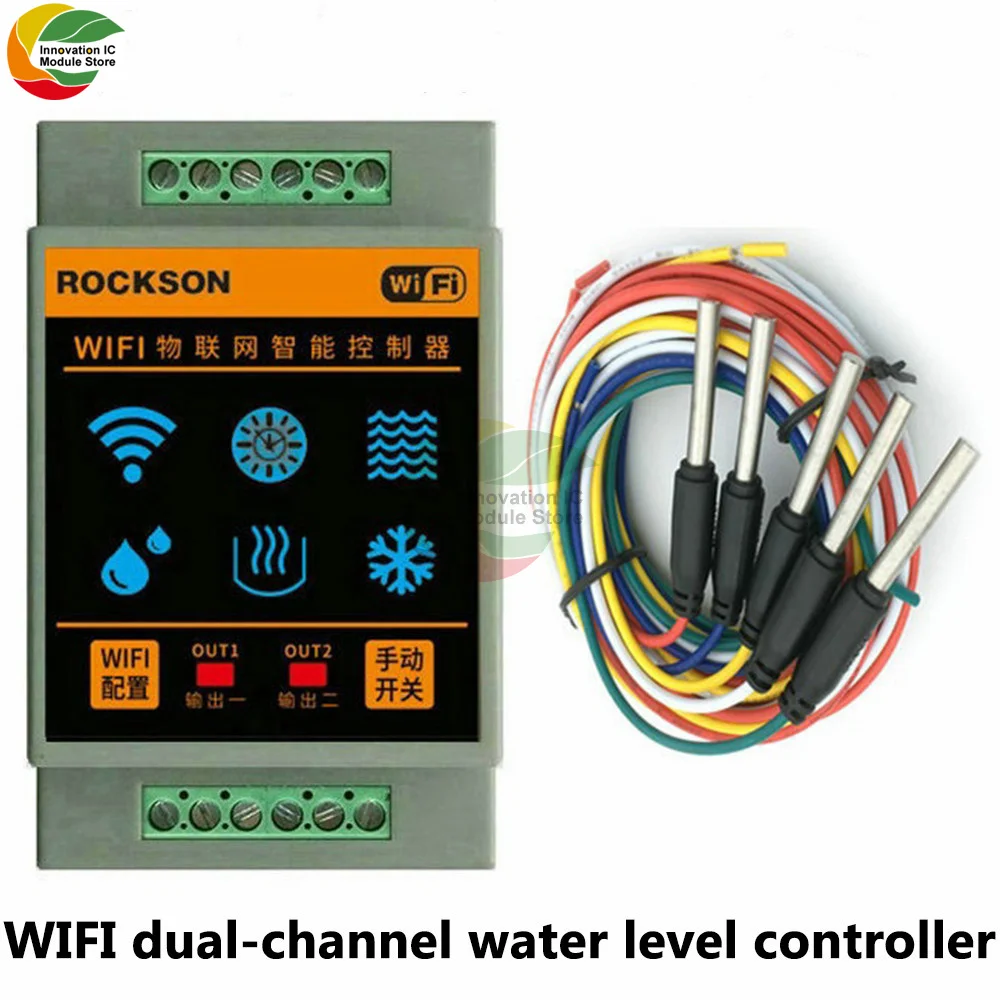

  Package list:

  Water level controller*1

  Water level electrode*5
