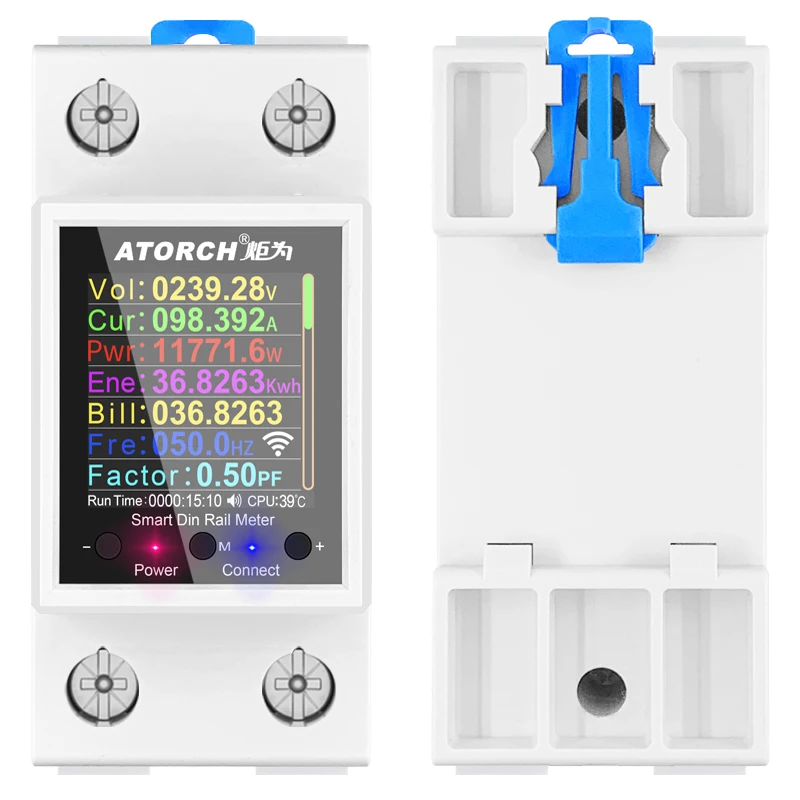

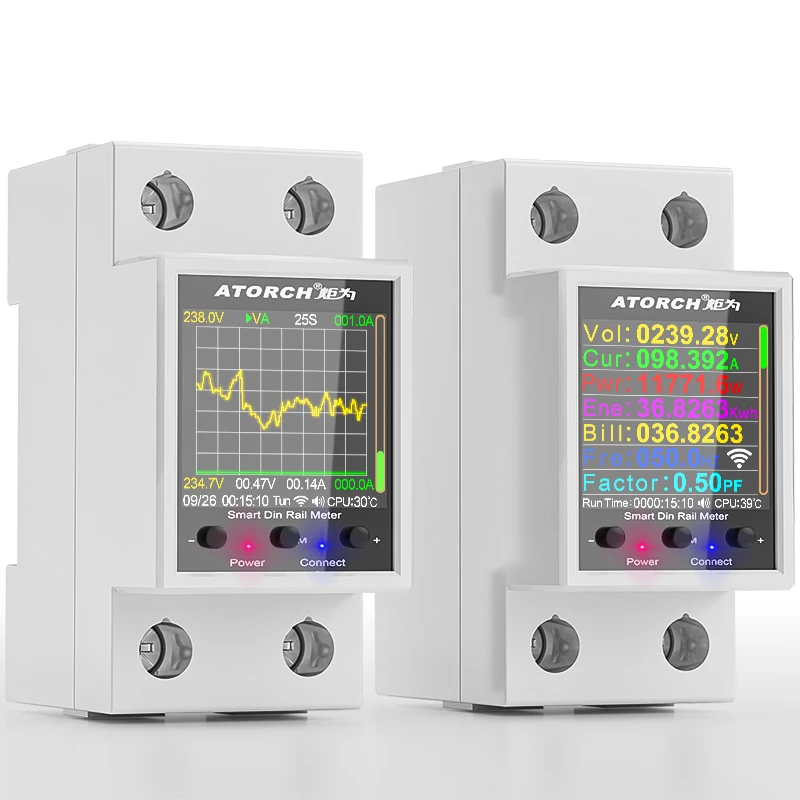

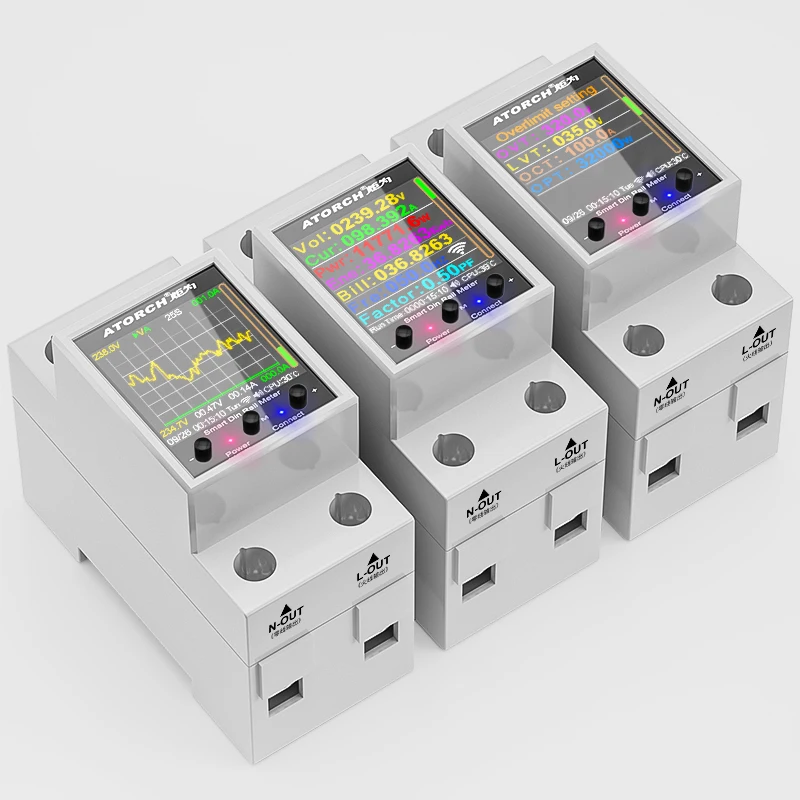

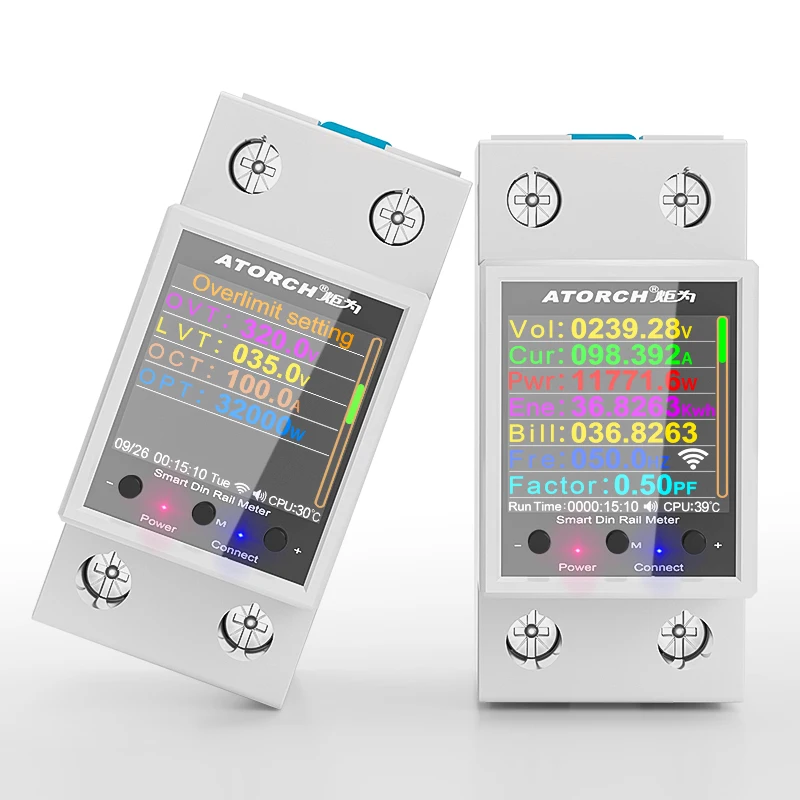

AC50-320V 100A Smart Electricity Meter Tuya WiFi Din Rail Power Energy Meter Digital Display Monitor Voltage Curve Ammeter

• Compare
• Add to Wishlist
• Ask a question
  Ask a question

  Submit now

• Description

  Description

  SPECIFICATIONS

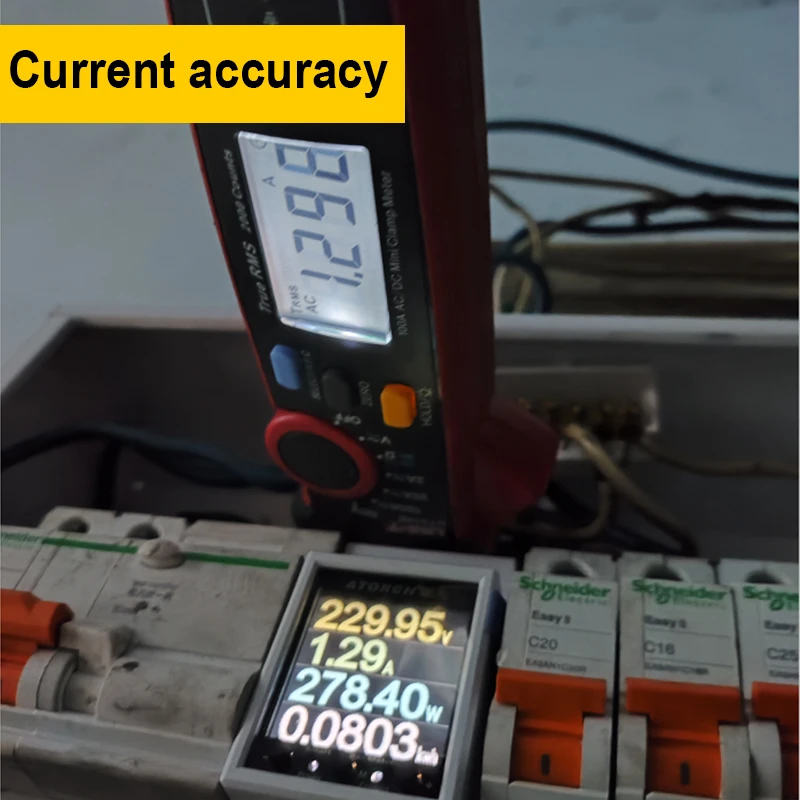

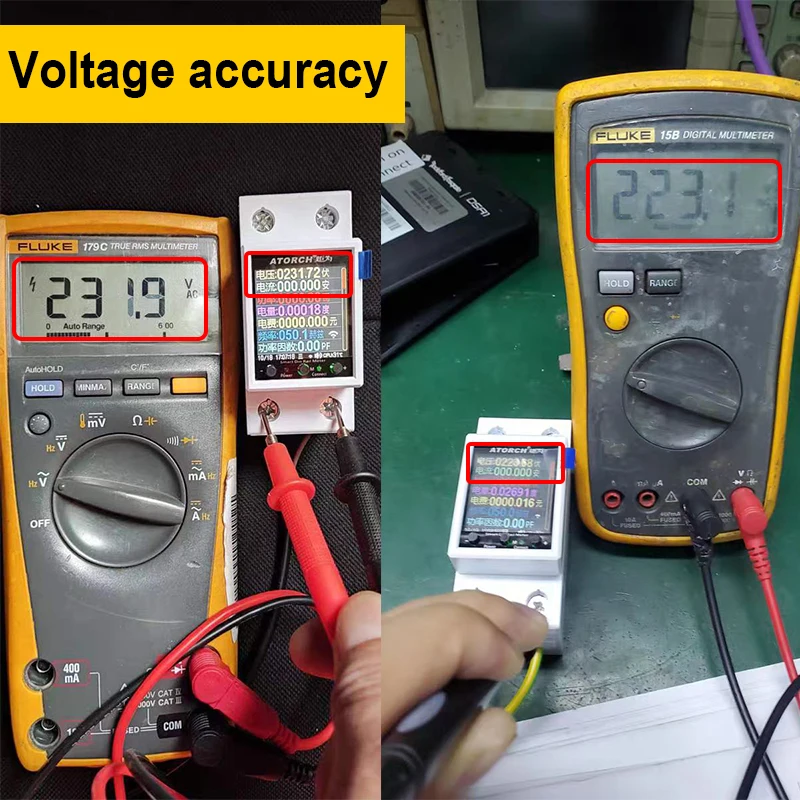

  Accuracy Class: 1%

  Battery Included: No

  Brand Name: ATORCH

  Certification: CE,RoHS

  Choice: yes

  Current measurement range: 0~100A

  DIY Supplies: Electrical

  Delayed recovery: WiFi version with switch support

  Dimensions: 90.80*69.80*36.00mm

  Display Type: Analog and Digital

  GR2P: No WiFi, no relay, no switch

  GR2PW: With WiFi, no relay, no switch

  GR2PWS: With WiFi, With relay, with switch

  High-concerned chemical: None

  Max Operating Current: 80A - 99A

  Measuring Energy Range: 0-999999KWH

  Model Number: GR2PWS/GR2PW/GR2P

  Operating Temperature: -10°C~+60°C

  Origin: Mainland China

  Output Voltage: AC50-320V

  Phase: single phase

  Power OFF memory function: support

  Power Supply: AC

  Power measurement range: 0~32.0KW

  Rated Voltage: 220V

  Voltage measurement range: AC50-320V

  Purchase instructions: In order to avoid unnecessary disputes, This product has three SKUs，Please read carefully!Then purchase, thank you!

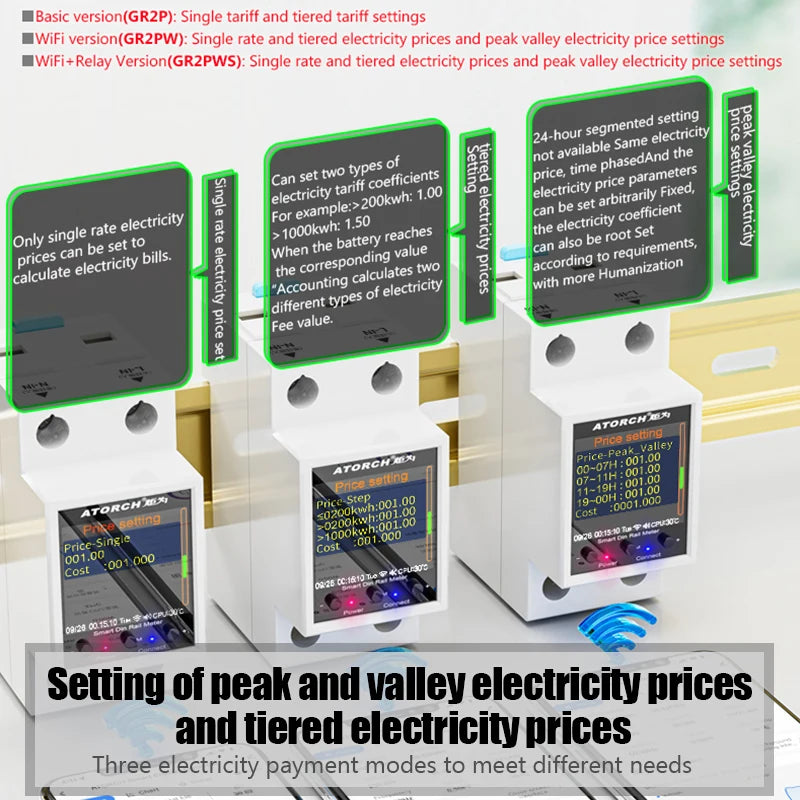

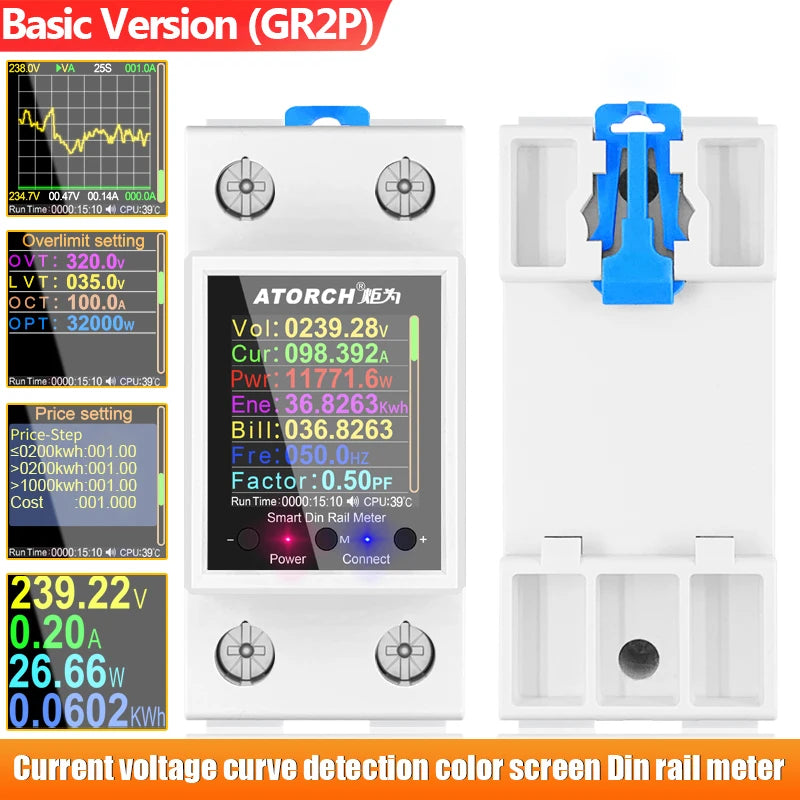

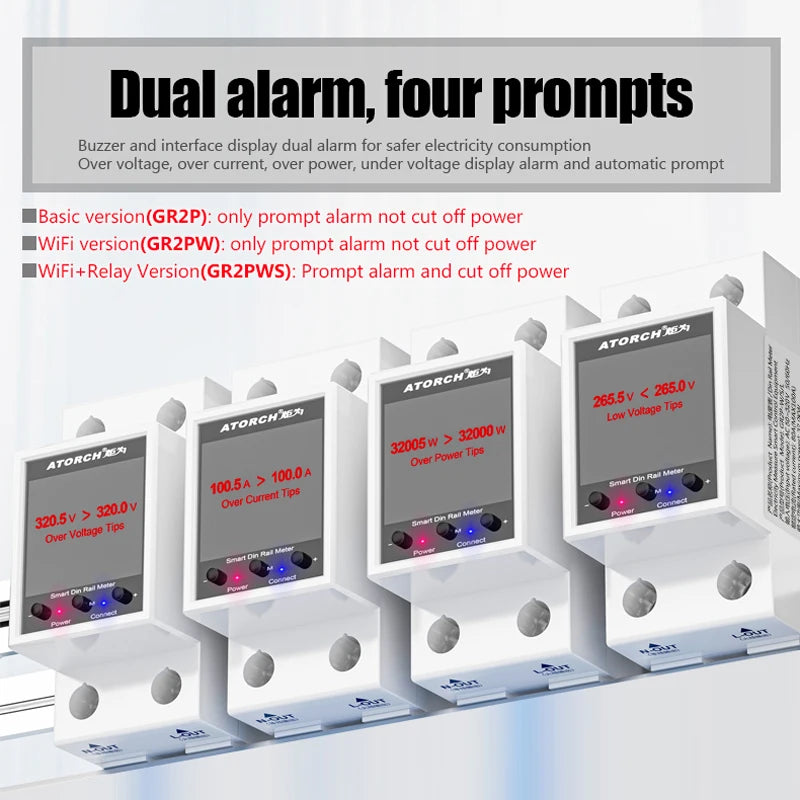

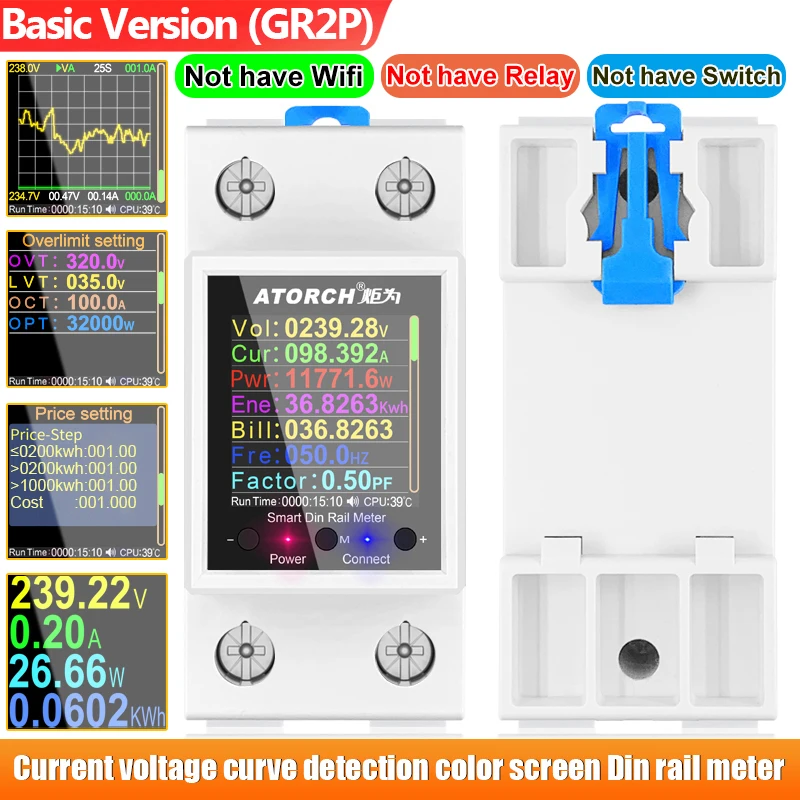

  1.Basic version(GR2P): only prompt alarm not cut off power not WiFi,not relay ,not switch

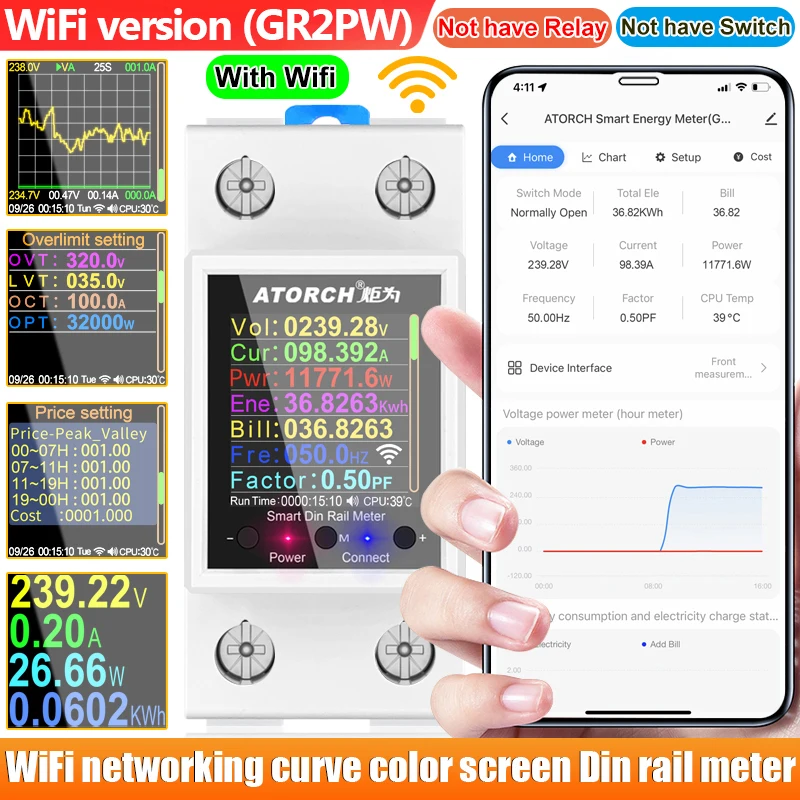

  2.WiFi version(GR2PW): only prompt alarm not cut off power With WiFi,not relay ,not switch

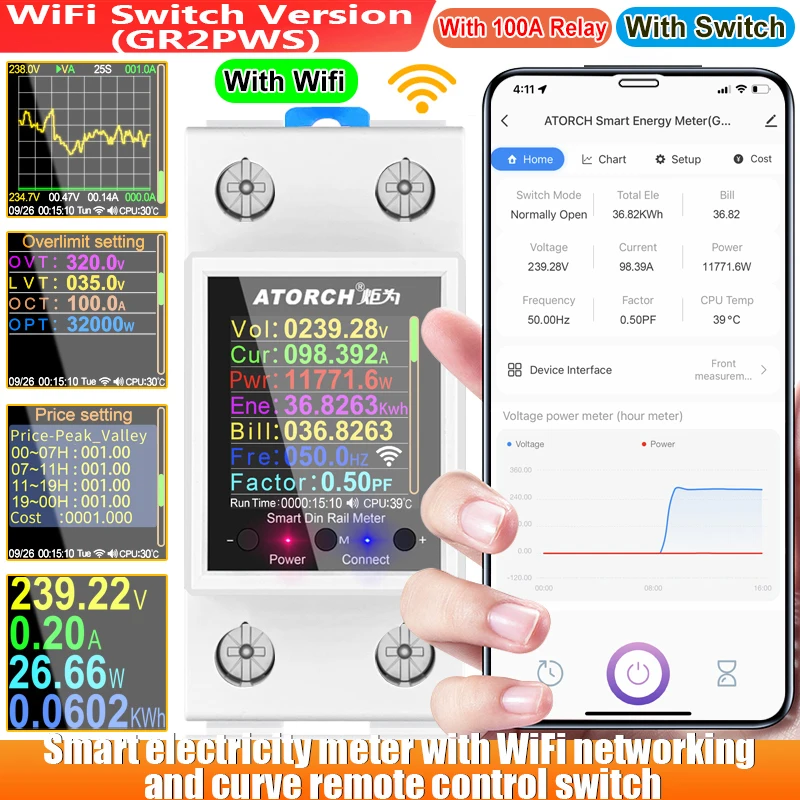

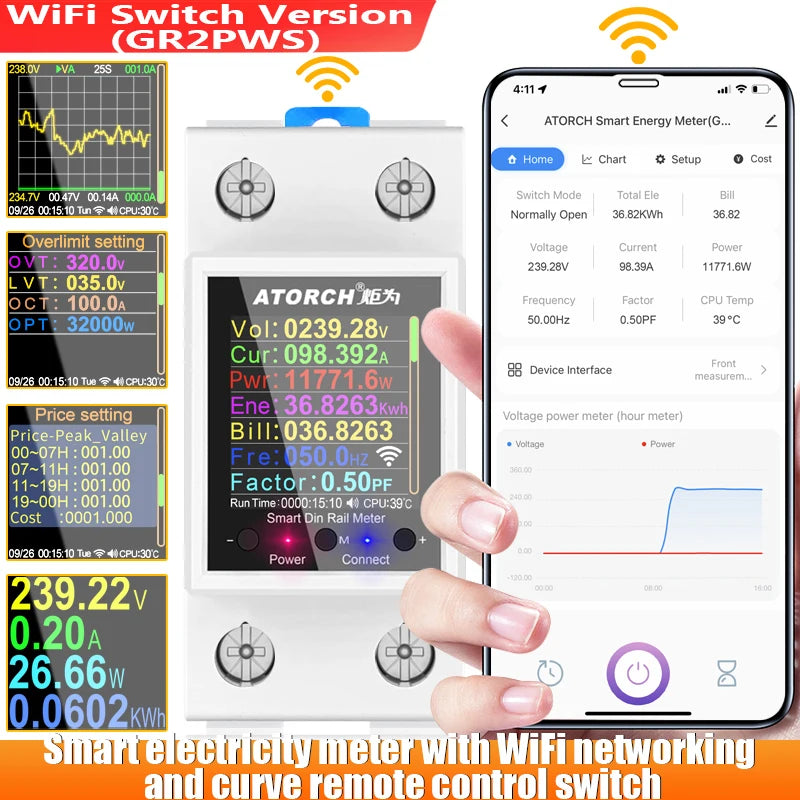

  3.WiFi+Relay Version(GR2PWS): Prompt alarm and cut off power With WiFi and with 100A relay ,with switch



  Only WiFi version can download this APP

  Phone APP download: Search in google play or apple app store: "tuya" or "smart life" app



  Attention:

  This product is a unidirectional current, not a bidirectional current. It cannot be used in solar power generation. It is a forward current and will not generate negative current!



  Information reminder and language selection operation method





  Explanation on wiring methods, magnetic retention relays, and automatic recovery of undervoltage and overvoltage

  When this meter is first powered on, the built-in magnetic retention relay needs to be reset. During this period, it will be turned on for more than ten seconds and maintain the output (delay protection). Only when the startup is completed and the measurement interface is reached, can the over limit enable (such as overvoltage, undervoltage, overcurrent, and overpower protection functions take effect) and the normal working mode of the measurement data be achieved,
  This meter can freely set the recovery time for undervoltage and overvoltage (1-99 minutes). When the voltage is restored, normal power supply will be restored within the time you set!
  If you have any objections, please purchase with caution!

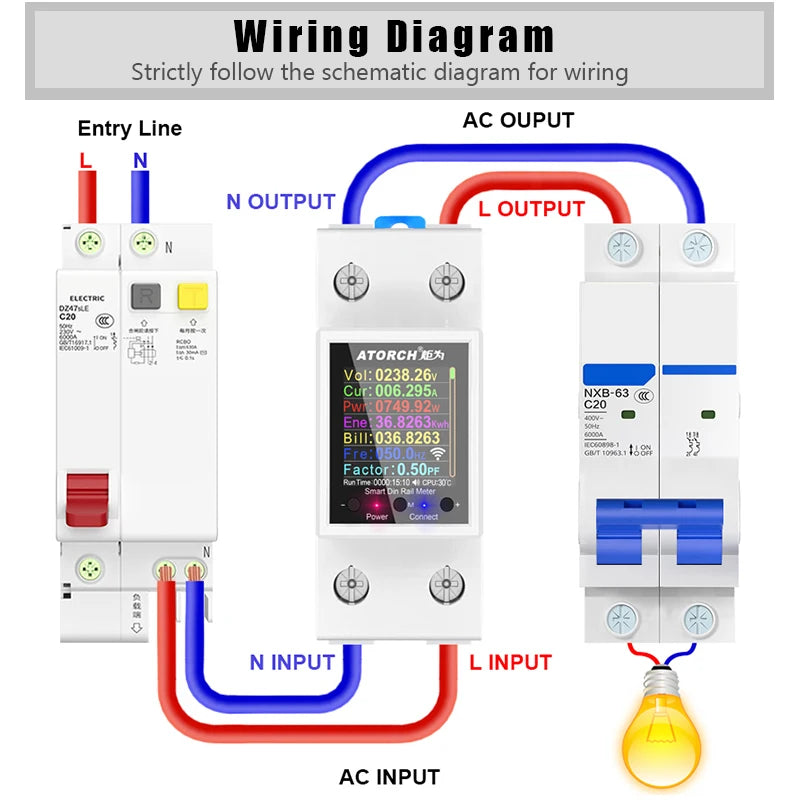

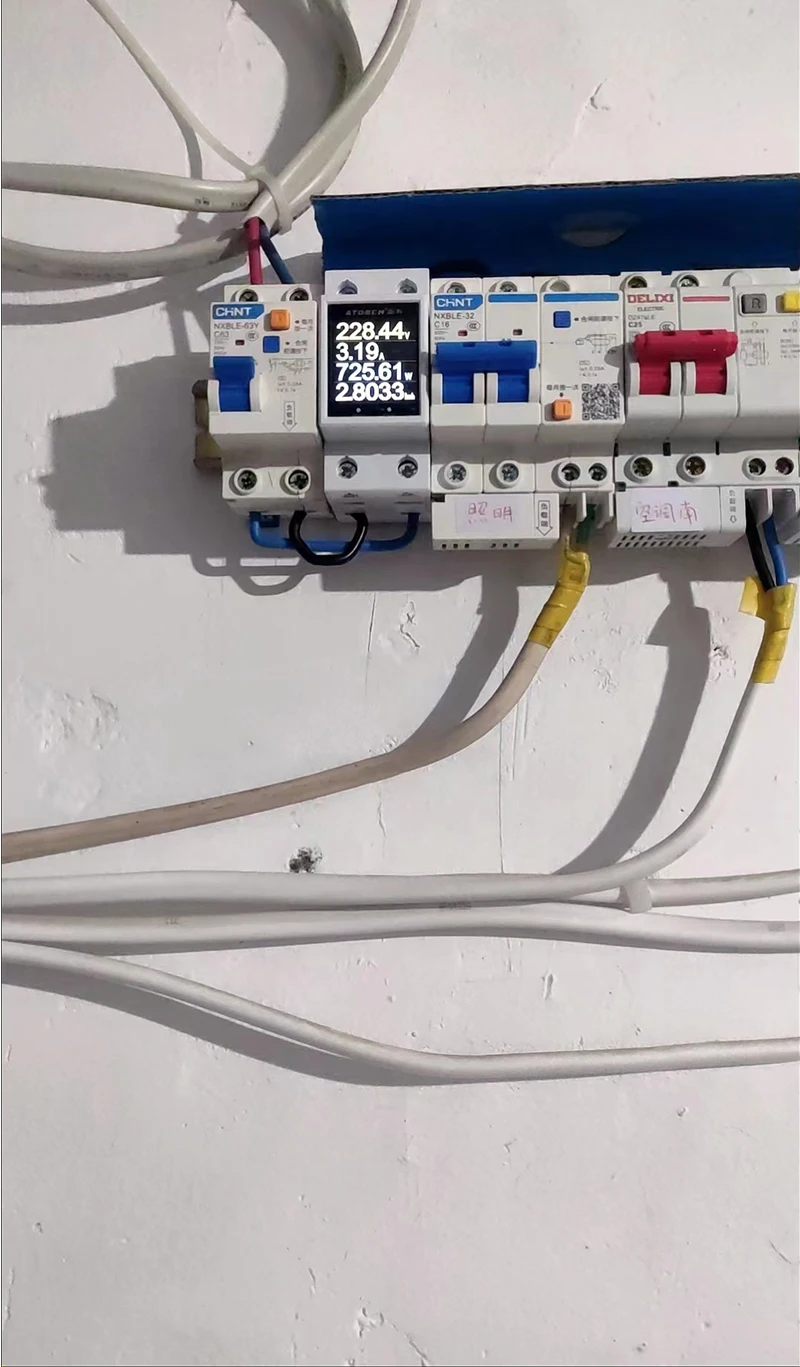

  (In view of this, please strictly follow the wiring diagram in this table to connect the air switch at the output end, and wait for the meter to start before turning on your device's air switch.)



  Firmware upgrade, WFI networking

  We will release new firmware from time to time, WIFI remote upgrade, please click on the upper right corner of the APP to view >> device upgrade >> update, you can upgrade the firmware



  About alarm event notification settings

  GR2PW and GR2PWS only have this feature for WiFi versions



  Q&A

  1. Are there any charges for data cloud?

  A: It's free!

  2. What APP is supported and where can I download it?

  A: Currently Tuya APP and Smart Life APP are supported, which can be downloaded in major application markets (Google Play for Android, Apple App Store for IOS)

  3. Does this currently support computer APP?

  A: The WIFI version does not support computer APP, but the Bluetooth version can support computer APP (please check the description of the Bluetooth version for details)

  4. What types of mobile phones are supported?

  A: Currently support Android phones and Apple phones!

  5. How big is the shunt?

  A: The built-in 100A shunt does not require an external CT!

  6. Is it single-phase or three-phase?

  A: At present this is a single-phase electricity!

  7. Is this product a 2.4G or 5G network?

  A: This model is the WIFI version, supports 2.4G network, currently does not support 5G!

  8. Regarding the relay, what is the difference between the WIFI version and the Bluetooth version?

  A: Built-in 100A relay, WIFI version include relay, Bluetooth version does not include relay.

  9. Does the product have power-off memory?

  A: Data has power-off memory, switch mode has no power-off memory. Once the power is turned on, the relay is closed, and the screen will normally display on that the connection is not disconnected!

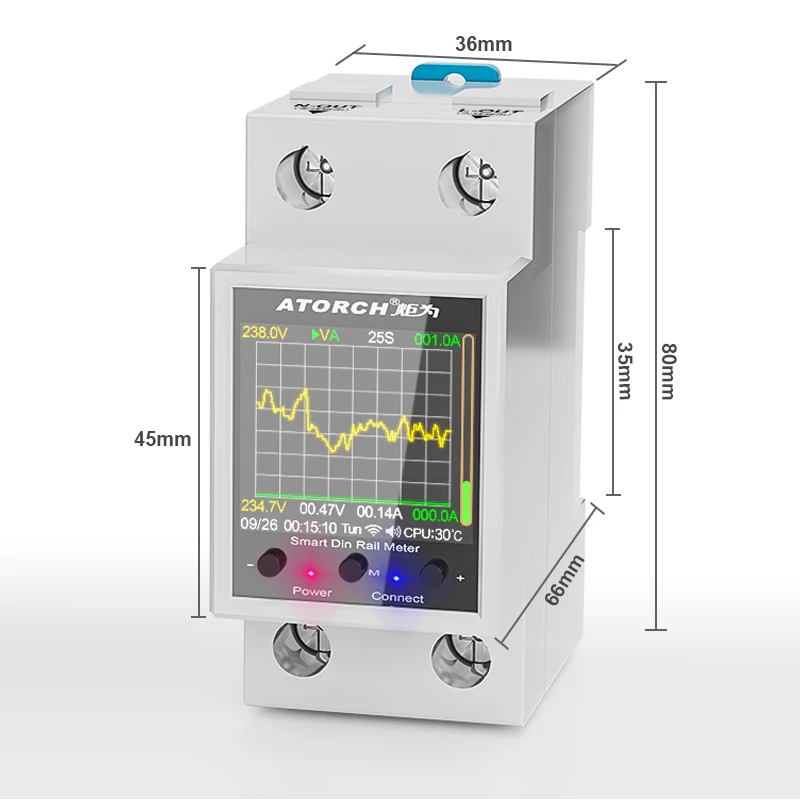

  Product size

  Length X Width X Height:80X36X45mm



  GR2P Product List

  1. GR2P voltmeter without WiFi modules, without relay switchesX1
  2. User Manual x1



  GR2PW Product List

  1. GR2PW voltmeter Including WiFi module, Without relay switches X1
  2. User Manual x1



  GR2PWS Product List

  1. GR2PWS voltmeter Including WiFi module, relay switch X1
  2. User Manual x1
