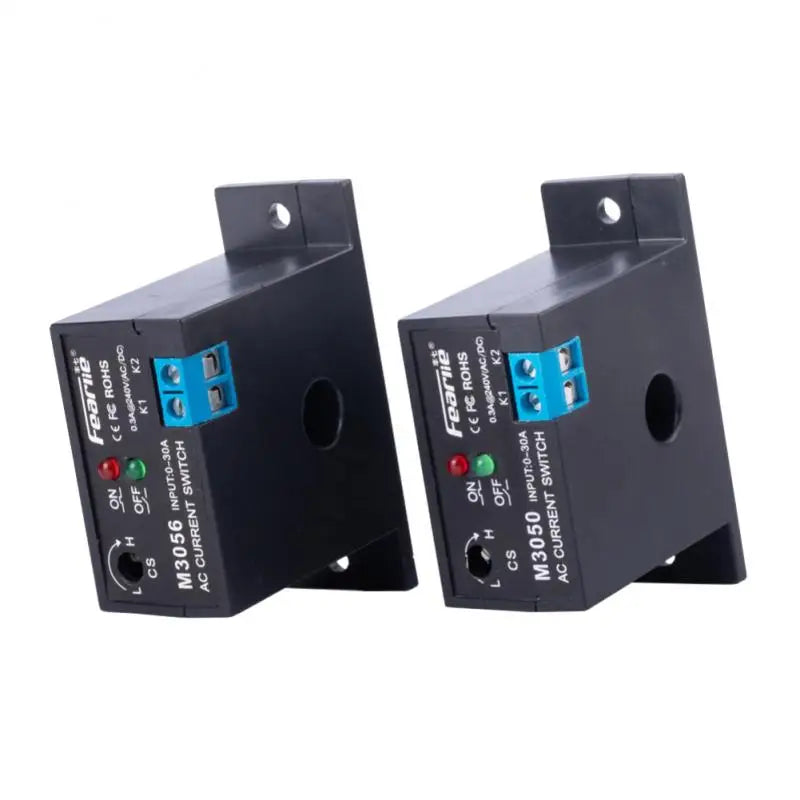

Smart Current Detection Switch 0.2-30A Induction Relay AC Linkage Device PLC Signal Over Limit Closed Ac Mutual Inductor
$20.88
-
Description
Description
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: RoHS,CE,None
Choice: yes
Contact capacity: 0.3A@240V AC/DC
Dimensions: 65x25x47MM
Features: //
High-concerned chemical: None
Hysteresis: less than 1%
Is Smart Device: No
Item Type: SWITCHES
Material: Plastic
Maximum leakage value: 0.1MA
Maximum overload capacity: 100%
Model Number: Switch Accessories
Monitoring current: 0.2-30A AC
Origin: Mainland China
Support: Dropshipping/Wholesale
Switch Type: Sensor Switch
The diameter of the perforation line: 10M
The shell color: black/blue
Warranty: one year
semi_Choice: yes
Description:

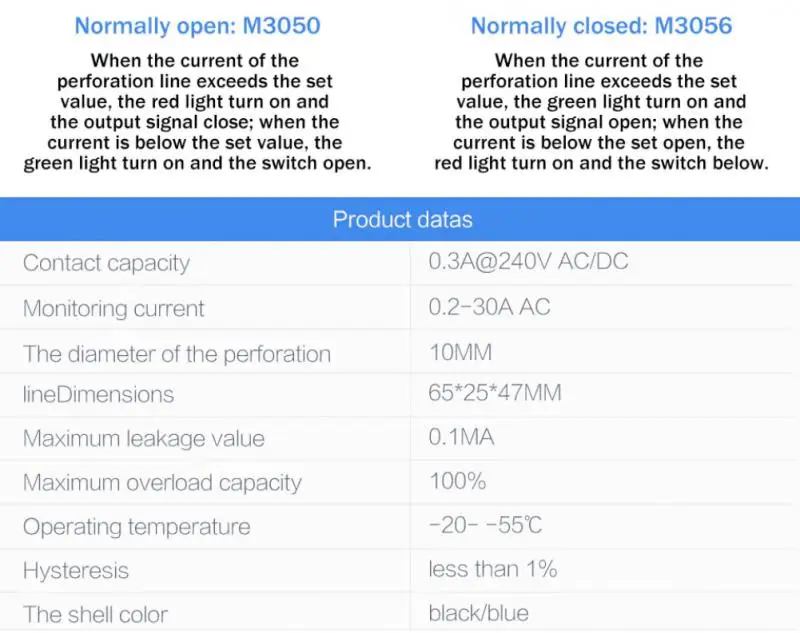

Product datas：
Monitoring current: 0.2-30A AC
Contact capacity: 0.3A@240V AC/DC
The diameter of the perforation line: 10MM
Dimensions: 65*25*47MM
Maximum leakage value: 0.1MA
Maximum overload capacity: 100%
Operating temperature: -20－55℃
Hysteresis: less than 1%
The shell color: black/blue
>Mutual inductance current monitoring, security isolation of input and output, self power
>The range of the monitored current is up to 30A;the monitoring threshold is adjustable within 0.2-30A.
>Hysteresis is less than 1%. It can be used instrong magnetic environment.
>Non-contact electronic switch with fast reaction and unlimited number of on-and-off operations.
>The shell is made of environmentally-friendly flame-retardant PC material.
Specifications:

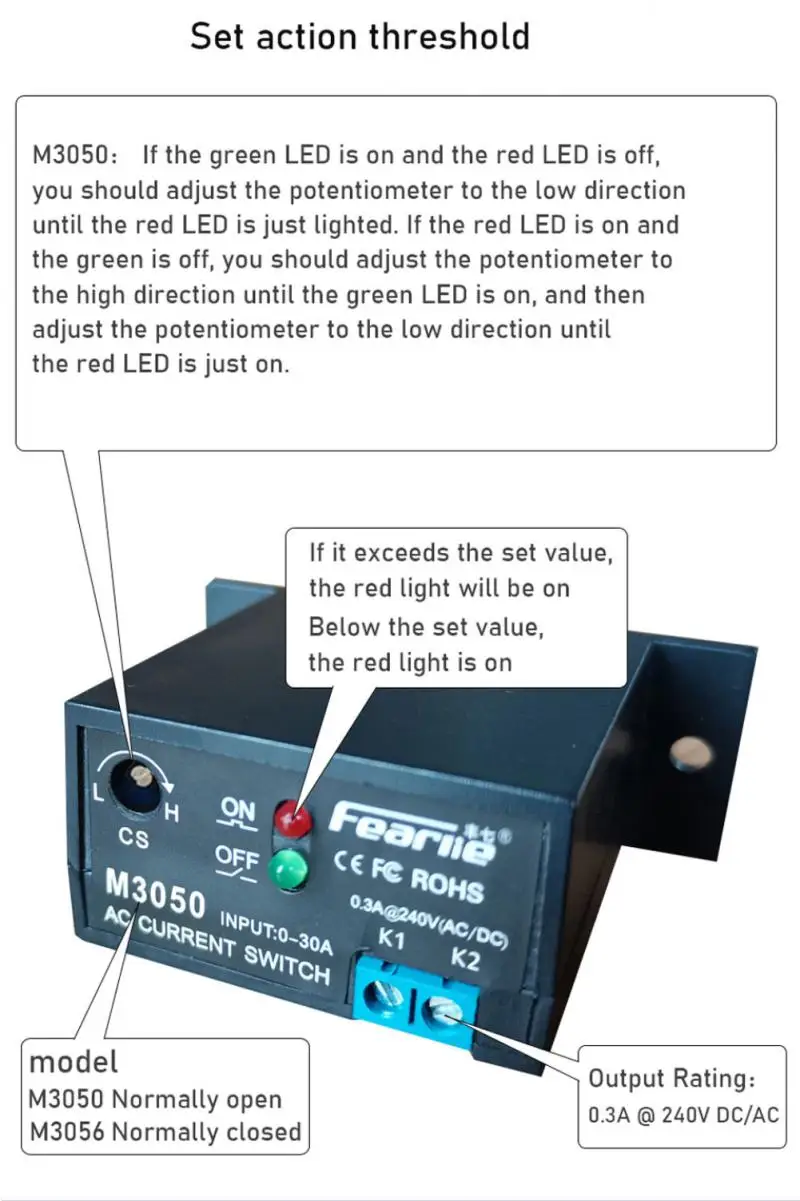

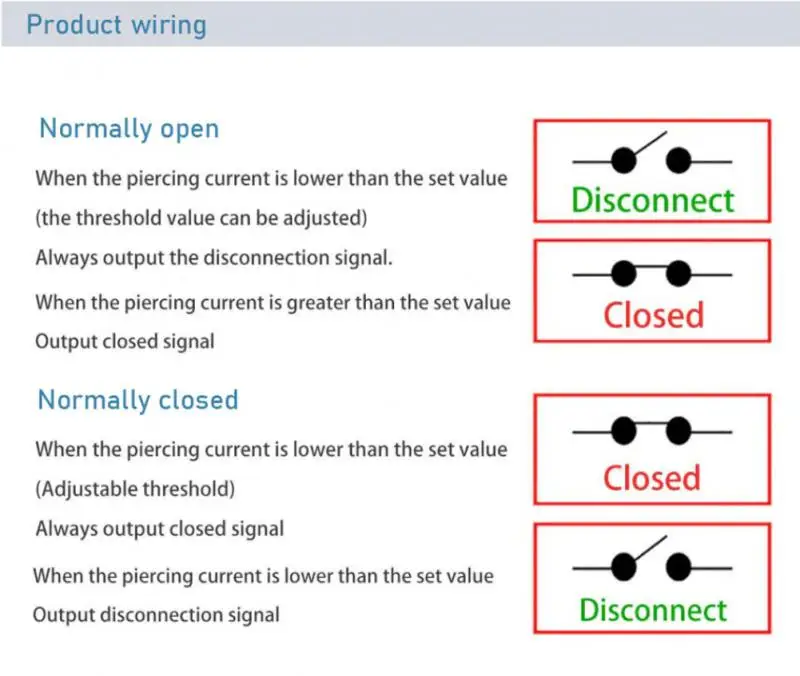

Operating principle：

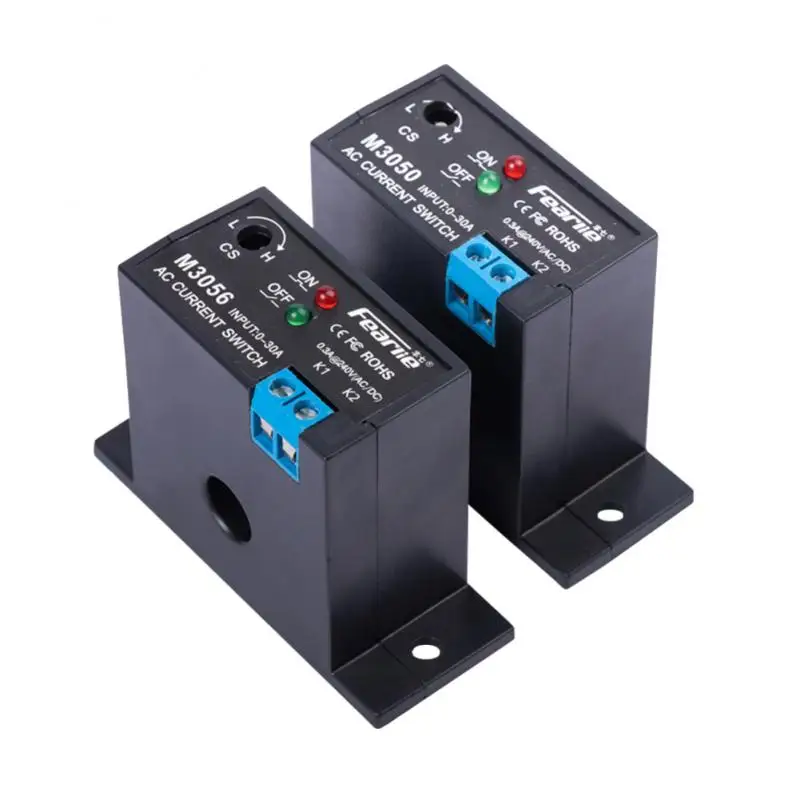

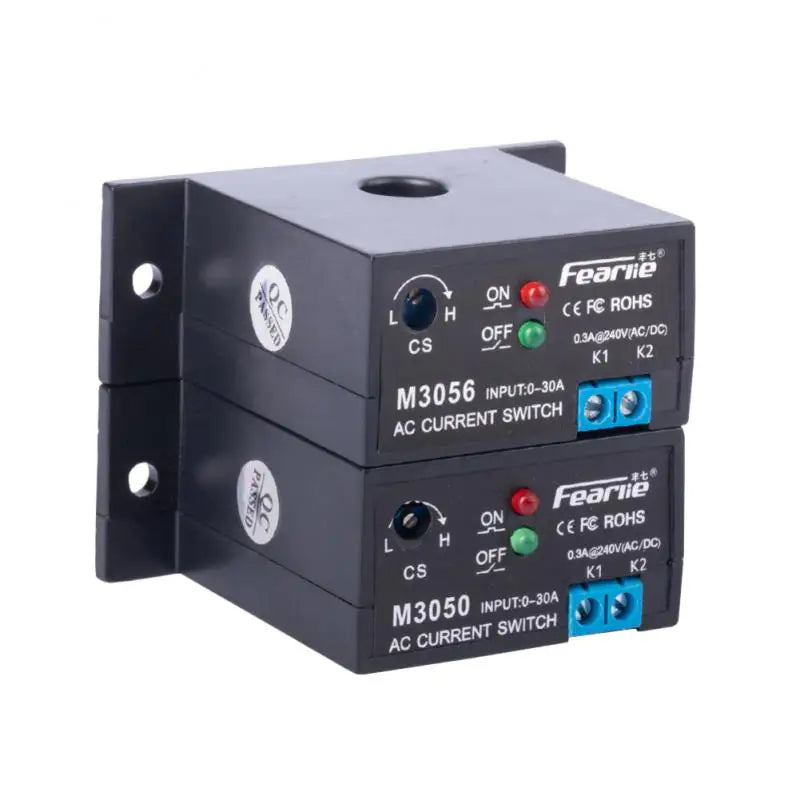

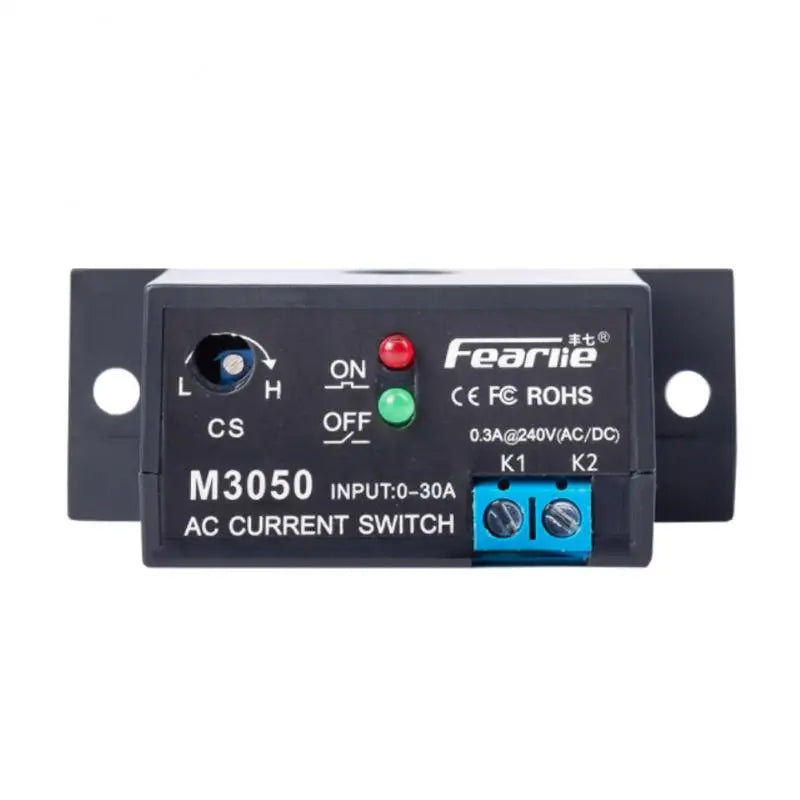

Normally open: M3050
When the current of the perforation line exceeds the set value, the red light turn on and the output signal close; when the current is below the set value, the green light turn on and the switch open.

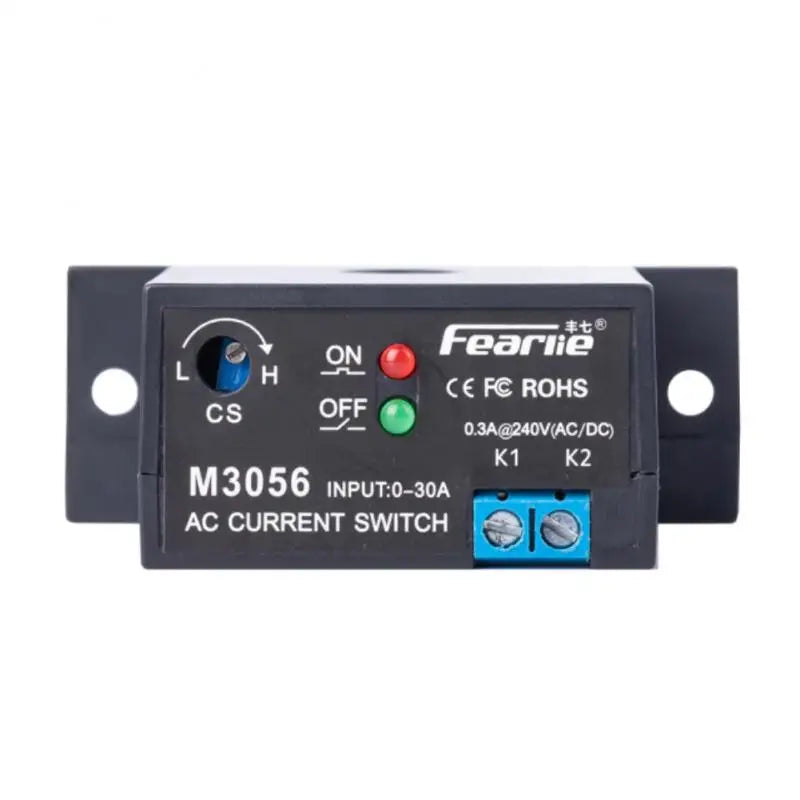

Normally closed: M3056
When the current of the perforation line exceeds the set value, the green light turn on and the output signal open ; when the current is below the set value, the red light turn on and the switchs close.
Package Included:
1*Current detection switch induction relay
-
