Smart Switch with Temperature and Humidity Sensor Passive Dry Contact Ewelink APP Wifi Relay Work with Home Assistant

• Compare
• Add to Wishlist
• Ask a question
  Ask a question

  Submit now

• Description

  Description

  SPECIFICATIONS

  3 control methods: APP, 433MHz Remote, voice control

  APP: eWeLink

  Brand Name: Scimagic-RC

  Certification: CE

  Choice: yes

  Communication method: RF,Wi-Fi

  Compatibility: All Compatible

  Feature 1: Work with Alexa

  Feature 2: Work with Google home

  Feature 3: Monitoring Temperature Sensor

  High-concerned chemical: None

  Input voltage 1: AC DC 7-32V USB5V

  Input voltage 2: AC 85-250V USB5V

  Max current: 2000W 10A

  Model Number: Temperature Humidity Smart switch

  Name: Temperature Smart switch module

  Name 1: smart home remote

  Name 10: wireless relay module

  Name 11: wifi smart switch

  Name 12: eWeLink 220V switch

  Name 2: smart wifi relay

  Name 3: google home module

  Name 4: Temperature sensor smart relay

  Name 5: switch wifi relay

  Name 6: smart relay wifi

  Name 7: wifi switch control

  Name 8: remote control relays

  Name 9: wifi switch

  Origin: Mainland China

  State of Assembly: Ready-to-Go

  semi_Choice: yes

  working temperature: -20 degrees to +70 degrees

  Overview:

  This item is a universal switch for your smart home system to remotely and automatically turn on/off any appliances by phone eWelink APP. When the temperature of the environment falls within the range, it will automatically turn on or off the connected devices. It also supports timing turning on/off the appliances and supports presetting the range for temperature.



  Smart Temperature Switch Specifications:

  Input voltage : DC/AC 7-32V , AC 85-250V, Micro USB 5V input.
  Output: Signal output only, no voltage output.
  Input current: Max 10A
  Wireless Standard: 2.4GHz, 802.11 b/g/n
  Security Mechanism: WPA-PSK/WPA2-PSK
  Control mode: Mobile APP EWeLink
  Platform: for Android, iOS
  Gang: 1
  Support temperature sensor: DS18B20 (not support humidity sensor now)
  Enclosure Material: Fire-retardant ABS V0
  Humidity: 5%-90%RH, Non-condensing
  Operating Temperature: 0ºC-40ºC
  Smart Switch Size: 72*45*29 (mm)

  Type: Waterproof temperature sensor
  Probe: Stainless steel temperature probe
  Temperature Measuring Range: -55℃~+125℃
  Operating Voltage: 3.0-5.5V
  Weight: 26g
  Length: 1m



  Smart Temperature Humidity Switch Specifications:

  Input voltage: AC 85-250V USB5V or AC/DC 7-32V USB5V
  Input current: Max 10A
  Max. Power: 2000W(10A)
  Wireless Standard: 2.4GHz, 802.11 b/g/n
  Security Mechanism: WPA-PSK/WPA2-PSK
  Control mode: Mobile APP Ewelink
  Platform: for Android, iOS
  Gang: 1
  Support temperature and humidity sensor .
  Enclosure Material: Fire-retardant ABS V0
  Operating Temperature: 0ºC-40ºC

  Type: temperature & humidity sensor
  Temperature Measuring Range: The error is less than ±0.5℃ in the temperature range of 0~100℃ ,
  The error is less than ±1.0℃ in the temperature range of -40 ~ 125℃
  Humidity Measuring Range:5% RH- 90% RH
  The error is less than ±5.0%RH in the humidity range of 20 ~ 80%RH
  Weight: 26g
  Length: 92.5cm



  Features:

  *App Support: Free iOS and for Android mobile App eWeLink.
  *Sync Status: Real-time device status provided to App.
  *Real-time monitor: Monitor real-time temperature.
  *Remote ON/OFF: Turn electrical devices on/off from anywhere, with high accuracy temperature waterproof DS18B20 sensor.
  *Share Control: Control your smart home together with your family.
  *Timing: Supports 8 enabled countdown/single/repeat timing tasks to turn on/off at specified time.
  *Auto Mode: Set Auto mode to turn on/off at a specified temp. range.
  *Manual Mode: Set manual mode to turn on/off immediately.
  *Trigger Smart Scene: The temp. value works as smart scene trigger conditions to trigger on/off other eWeLink devices.
  *Voice Control: Compatible with "Amazon" Alexa, for Google Home, for Google Nest.
  *Waterproof temperature sensor with stainless steel temperature probe, high accuracy, wide usage in daily life.
  *RF Remote control: Turn on/off by 433MHz RF Remote indoors,Only support 433MHz Learning code.

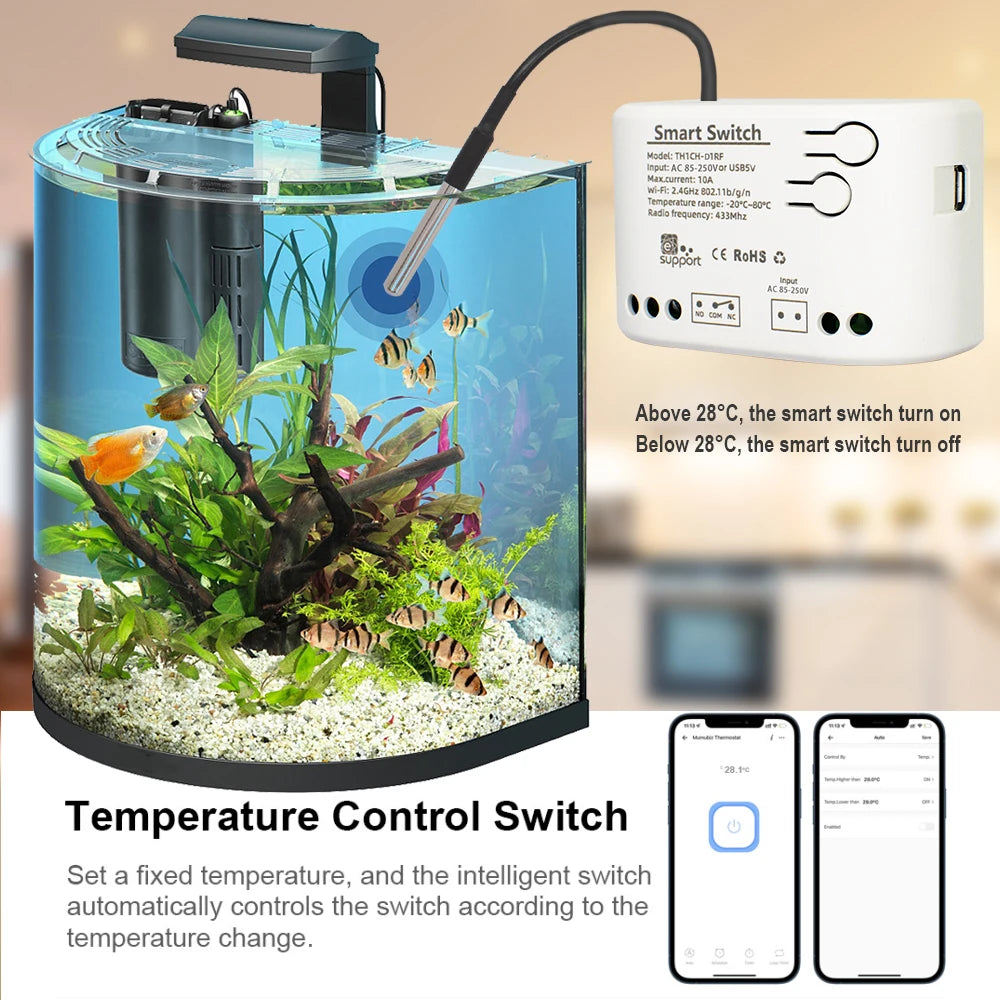

  Smart Temperature Control Switch

  Set a fixed temperature, and the intelligent switch automatically controls the switch according to the temperature change.



  Rich application scenarios



  APP remote control

  Control your home appliances from anytime anywhere with the Ewelink APP.



  Voice Control

  Compatible with Alexa & Google Home, You can control your device by voice.



  Supports RF 433MHz remote control.

  Catering for different needs, the RF remote control is more convenient. Only support 433MHz Learning code.
  Special Tip:This smart switch does not include a remote control.



  Timing Function

  Single / Repeat / Countdown / Loop Timer



  Family Sharing

  Share the control with family member.Enjoy the convenience and happiness together



  Noted :

  Your have the correct wif password.
  Your smart phone or tablet must have access to APP store or google play.
  Your router is MAC-open.
  Your smart phone or tablet has connected to a 2.4g wifi with internet.
  Default inching time 1s , you can set inching time from 1s to 3600s in APP ( Ewelink).
  The remote control is not included and you are strongly advised to purchase a 433MHz learning code remote control from my shop, clone codes and rolling code remotes are not supported.



  NOTE:

  DS18B20 sensor can only detect temperature, if you need to detect humidity, please prepare your own humidity sensor.

  Include:

  1 * Smart Switch
  1 * Sensor
